Section 11 (Manual Transmission - 6-Speed Manual Transmission - B6): Disassembly: Transmission
WARNING: This page is about a different variant/trim than selected.
Special Tool(s) / General Equipment
| 307-003 (T57L-500-B)Holding Fixture, Transmission | |
|---|---|
| Puller | |
| Punch |
WARNING:
Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
- 3.

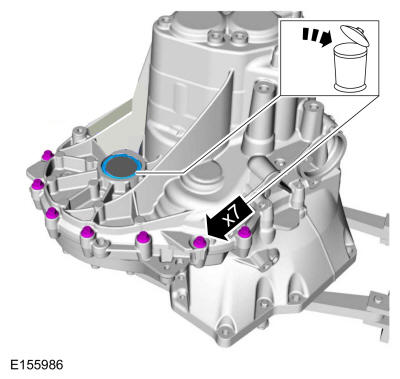

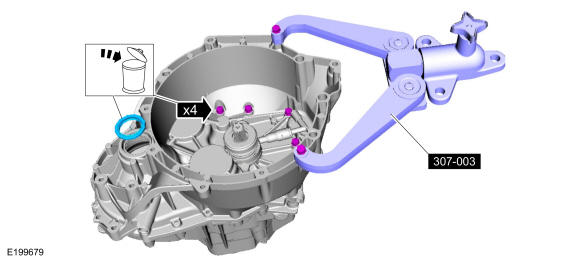

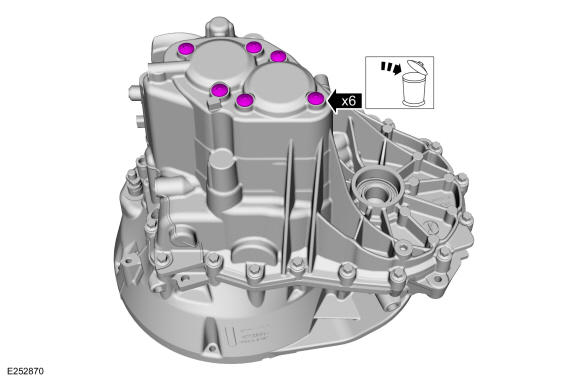

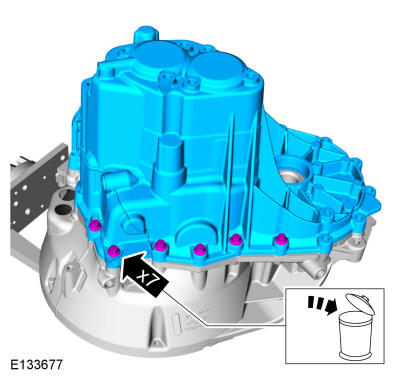

Install the special tool on the clutch housing and install the transmission on a bench. Remove and discard the RH halfshaft seal and the transmission case bolts. Install Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission.
- 5.NOTE: Make sure that the selector lever is in the neutral (N) position.

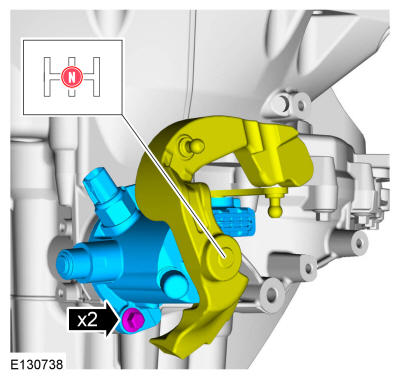

Position the selector mechanism in neutral, remove the bolts and remove selector mechanism.
- 9.NOTE: Note the position of the lube tube for assembly.

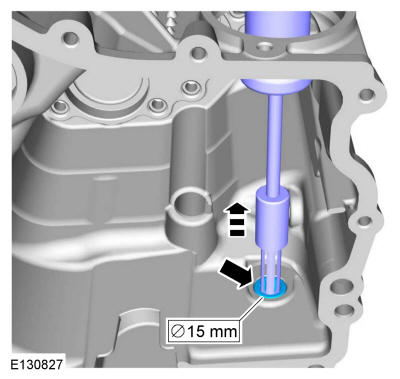

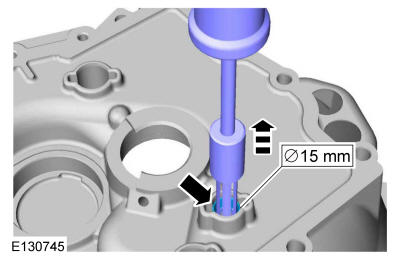

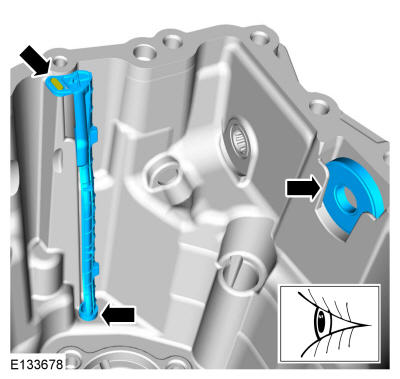

Remove the lube tube and the magnet from the transmission case.

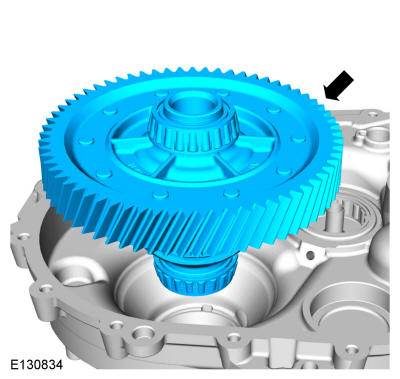

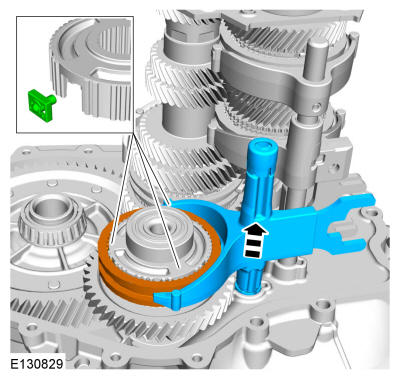

- 11.NOTE: The differential ring gear may hang up on the shaft assemblies.

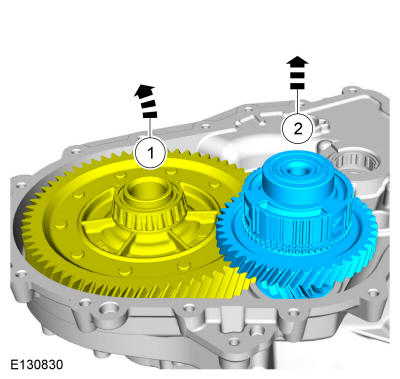

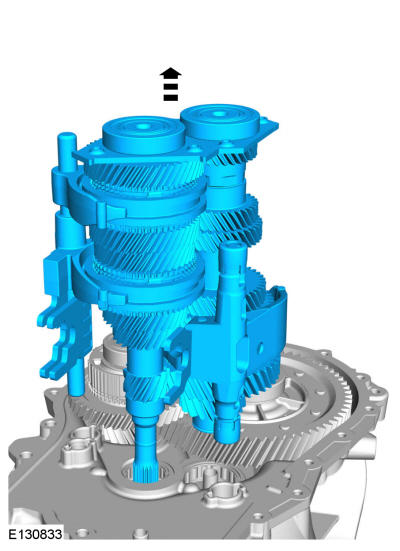

Remove the input and output shaft assemblies.
- 14.

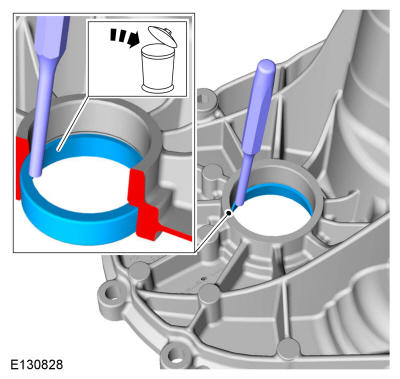

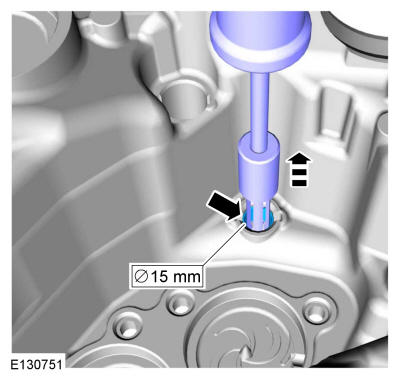

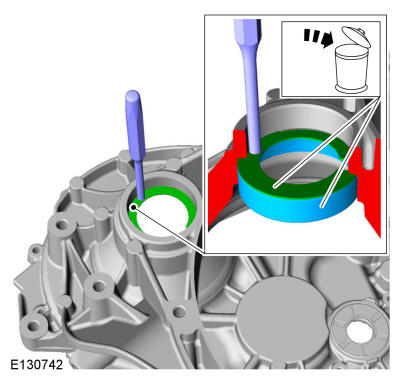

Using a punch, drive the differential bearing cup and shim out of the clutch housing. Remove and discard the bearing cup and the shim. Use the General Equipment: Punch
- 18.

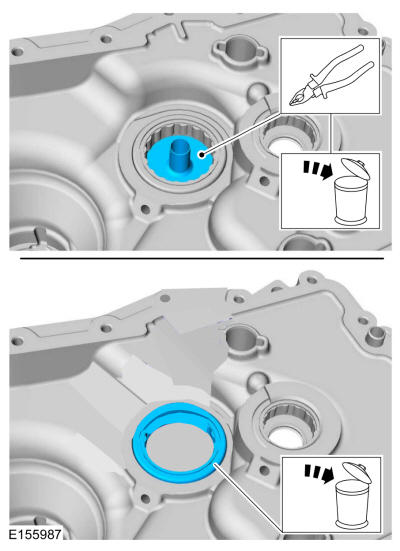

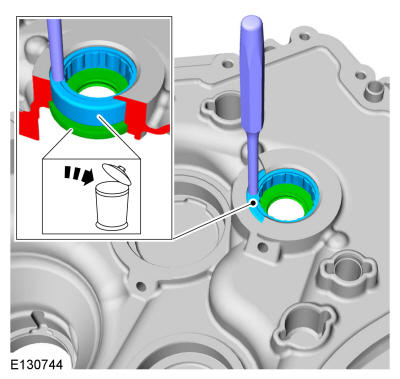

Remove and discard the differential bearing cup from the transmission case. Use the General Equipment: Punch
