Reverse Gear Output Shaft: Disassembly
WARNING: This page is about a different variant/trim than selected.
- 1.

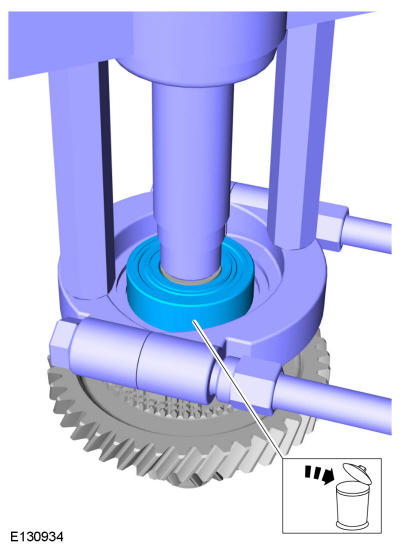

Remove the bearing. Use the General Equipment: Bearing SeparatorUse the General Equipment: Puller
 Courtesy of FORD MOTOR COMPANY
|
- 2.

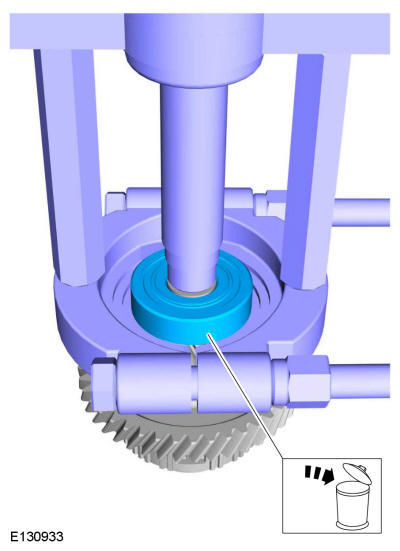

Remove the bearing. Use the General Equipment: Bearing SeparatorUse the General Equipment: Puller
 Courtesy of FORD MOTOR COMPANY
|
- 3.

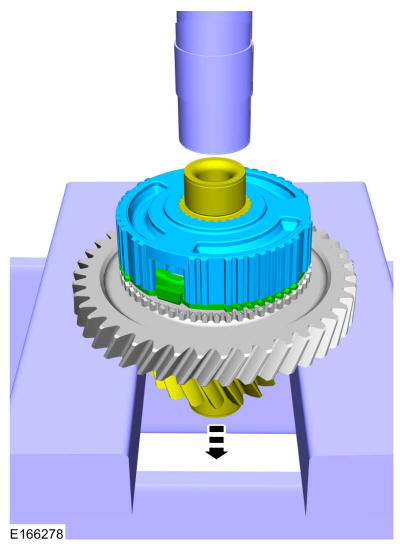

Remove the reverse gear synchronizer ring and the synchronizer body. Use Special Service Tool: 205-D015 (D80L-630-4) Step Plate. Use the General Equipment: Hydraulic Press
 Courtesy of FORD MOTOR COMPANY
|
- 4.

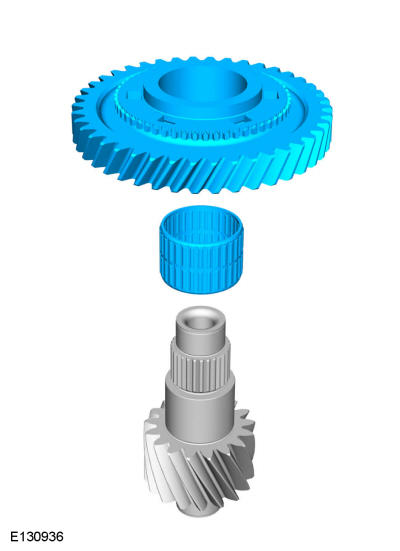

Remove the reverse gear and the needle bearing.
 Courtesy of FORD MOTOR COMPANY
|
