Disassembly And Assembly Of Subassemblies: Differential: Assembly
WARNING: This page is about a different variant/trim than selected.
- 1.NOTE: Do not lubricate new roller bearings.
Lubricate all other transmission components with transmission fluid during reassembly.
Material: Motorcraft ® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)
NOTE:
Use vise jaw protectors.

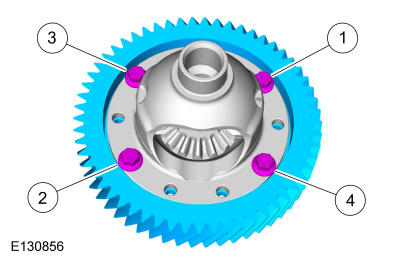

- 3.NOTE: Make sure that the mating faces are clean and free of foreign material.
- Install the four bolts saved during disassembly.
- Tighten each bolt 1 turn at a time in the sequence shown below.
Torque: 37 lb.ft (50 Nm)
- 5.

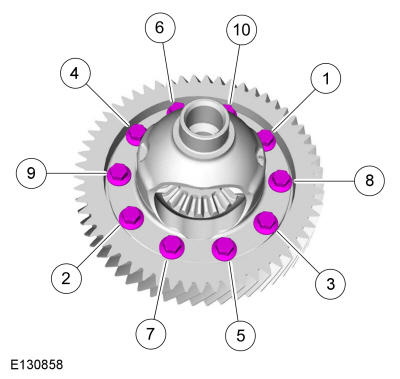

Install new bolts and tighten each bolt 1 turn at a time in the sequence shown below.Torque:
Stage 1: 37 lb.ft (50 Nm)
Stage 2: 90 °

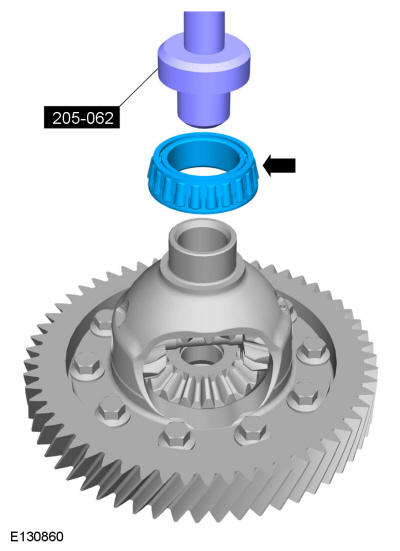

- 6.NOTE: The roller bearing must not be lubricated.
Install the bearing. Use Special Service Tool: 205-062 Installer, Differential Bearing.

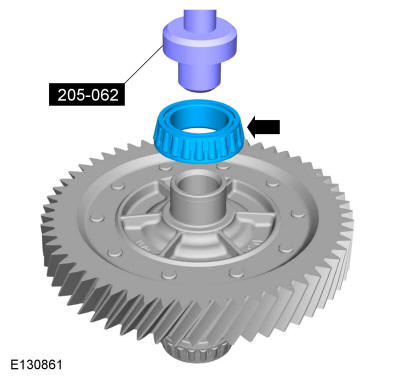

- 7.NOTE: The roller bearing must not be lubricated.
Install the bearing. Use Special Service Tool: 205-062 Installer, Differential Bearing.
