Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
GFD138731Courtesy of FORD MOTOR COMPANY

  1. 2.

    1. 1.

      Use the General Equipment: Hose Clamp Remover/Installer

      Torque: 97 lb.in (11 Nm)

GFD139971Courtesy of FORD MOTOR COMPANY

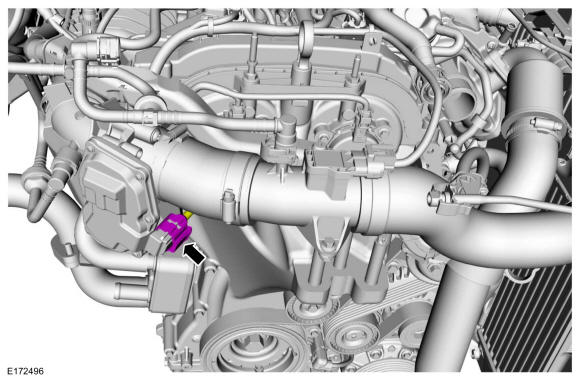

GFD139979Courtesy of FORD MOTOR COMPANY
GFD138678Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: The O-ring seals are to be reused unless damaged.
    NOTE: Note the position of the components before removal.

    Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

    Torque: 62 lb.in (7 Nm)

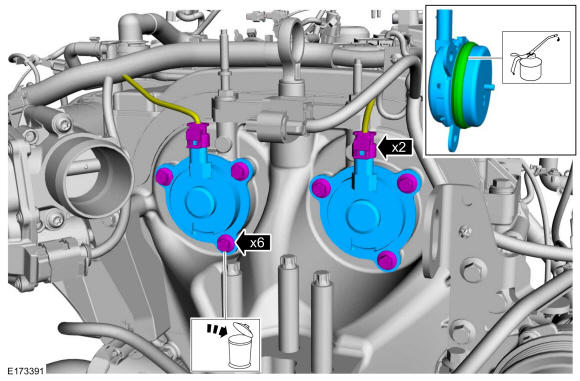

GFD139980Courtesy of FORD MOTOR COMPANY
