Oil Pressure Control Solenoid: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.

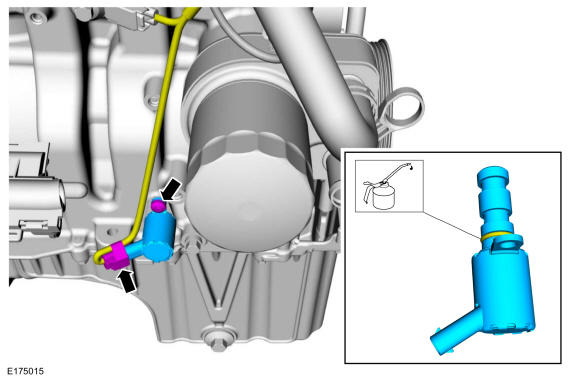

- Lubricate O-ring.
Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- Disconnect the electrical connector, remove the retainer and the oil pressure control solenoid.
Torque: 80 lb.in (9 Nm)
- Lubricate O-ring.
