Manifold Absolute Pressure and Temperature (MAPT) Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

Courtesy of FORD MOTOR COMPANY

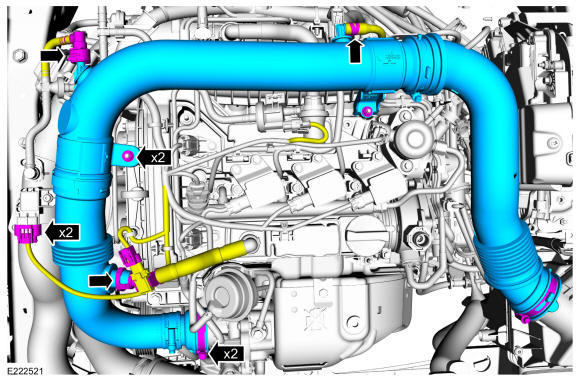

1. 2.

   Use the General Equipment: Hose Clamp Remover/Installer

   Torque

   : 93 lb.in (10.5 Nm)

   : 36 lb.in (4.1 Nm)

Courtesy of FORD MOTOR COMPANY

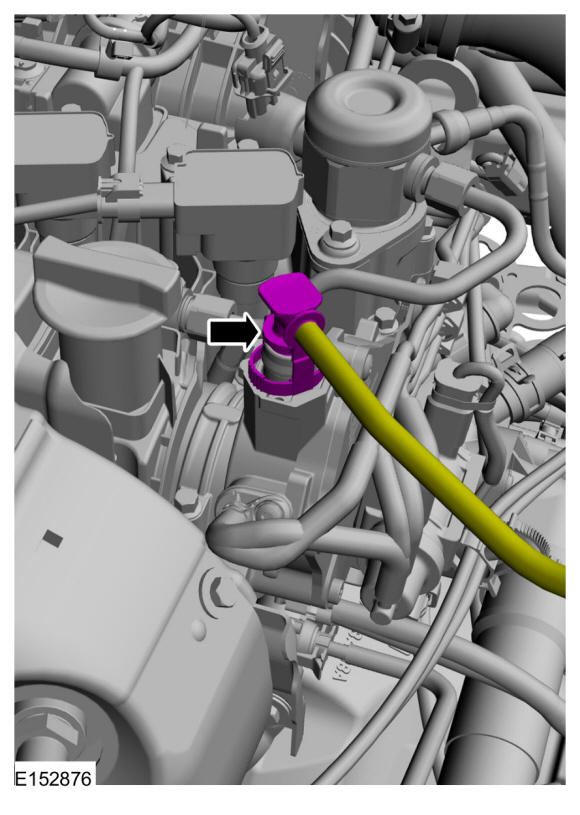

1. 3.

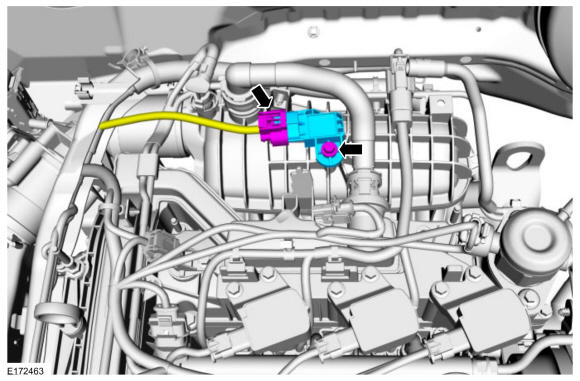

   Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
