Knock Sensor (KS): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Refer to: Jacking and Lifting - Overview .
- 2.NOTE: Note the position of the component before removal.

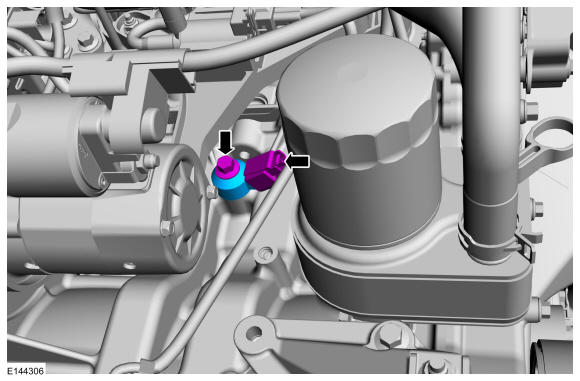

- Disconnect the KS electrical connector.
- Remove the bolt and the KS.
Torque: 177 lb.in (20 Nm)
