Heated Oxygen Sensor (HO2S): Removal
WARNING: This page is about a different variant/trim than selected.
- 1.
Loosen the clamps and remove the air cleaner outlet pipe.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

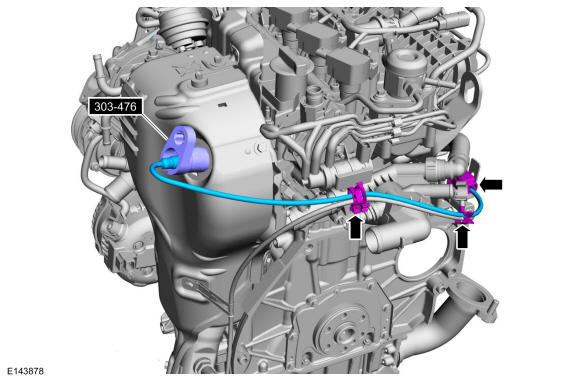

Detach the wiring harness retainers and remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
 Courtesy of FORD MOTOR COMPANY
|
