Heated Oxygen Sensor (HO2S): Installation

WARNING: This page is about a different variant/trim than selected.

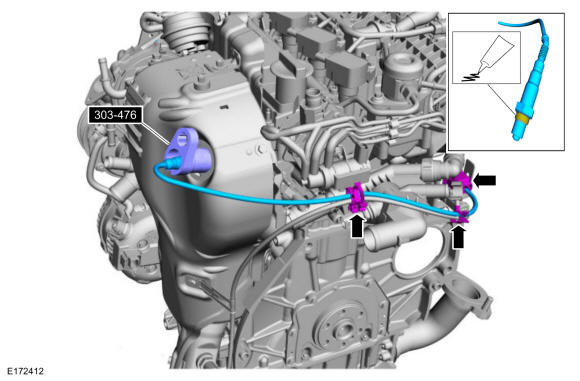

1.
- Lubricate the O-ring.
  Material: Motorcraft ® High Temperature Nickel Anti-Seize Lubricant / XL-2
- Install the HO2S and attach the wiring harness retainers.
  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

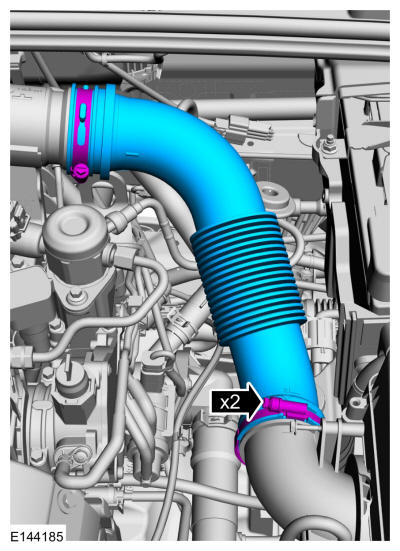

2.

Install the air cleaner outlet pipe and tighten the clamps.
Torque: 36 lb.in (4.1 Nm)

Courtesy of FORD MOTOR COMPANY
