Engine Coolant Temperature (ECT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

1.

Refer to: Cooling System Draining, Vacuum Filling And Bleeding .

2.
1. 1.

  Disconnect the ECT electrical connector.
1. 2.

  Release the retaining clip.
1. 3.

  Remove the ECT sensor.

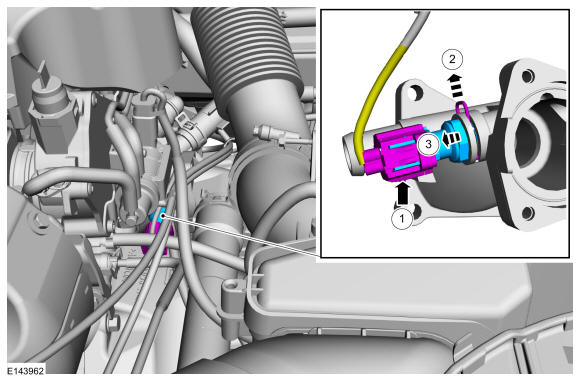

GFD139965

Courtesy of FORD MOTOR COMPANY
