Cylinder Head Temperature (CHT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the turbocharger. Refer to: Turbocharger .

  1. 2.

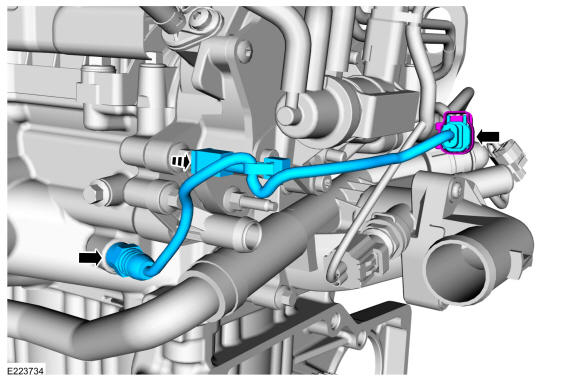

    Disconnect the electrical connector and the harness retainer. Remove the CHT sensor.

    Torque: 106 lb.in (12 Nm)

GFD139964Courtesy of FORD MOTOR COMPANY
