Crankshaft Position (CKP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Refer to: Jacking and Lifting - Overview .
- 2.

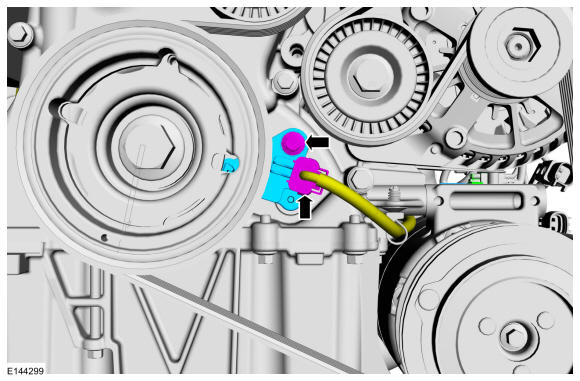

- Disconnect the CKP sensor electrical connector.
- Remove the bolt.
Torque: 89 lb.in (10 Nm)
- Remove the CKP sensor.
