Camshaft Position (CMP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

1.
1. 1.

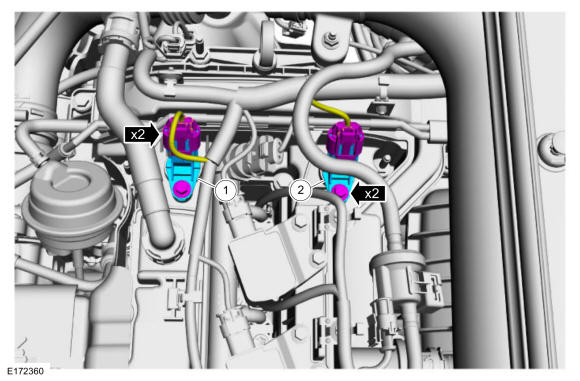

  CMP sensor - exhaust camshaft Disconnect the CMP sensor electrical connector, remove the retainer and the CMP sensor.
1. 2.

  CMP sensor - intake camshaft Disconnect the CMP sensor electrical connector, remove the retainer and the CMP sensor.

GFD139956

Courtesy of FORD MOTOR COMPANY
