Camshaft Position (CMP) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

1.

To install, reverse the removal procedure.

2.
1. 1.

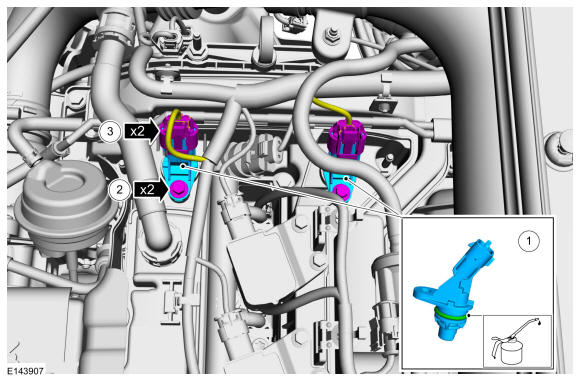

  Lubricate the O-ring with clean engine oil and install the CMP sensors.
  Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
1. 2.

  Tighten the retainers.
  Torque: 89 lb.in (10 Nm)
1. 3.

  Connect the CMP sensor electrical connectors.

GFD139957

Courtesy of FORD MOTOR COMPANY
