Electronic Engine Controls - 1.0L GTDI

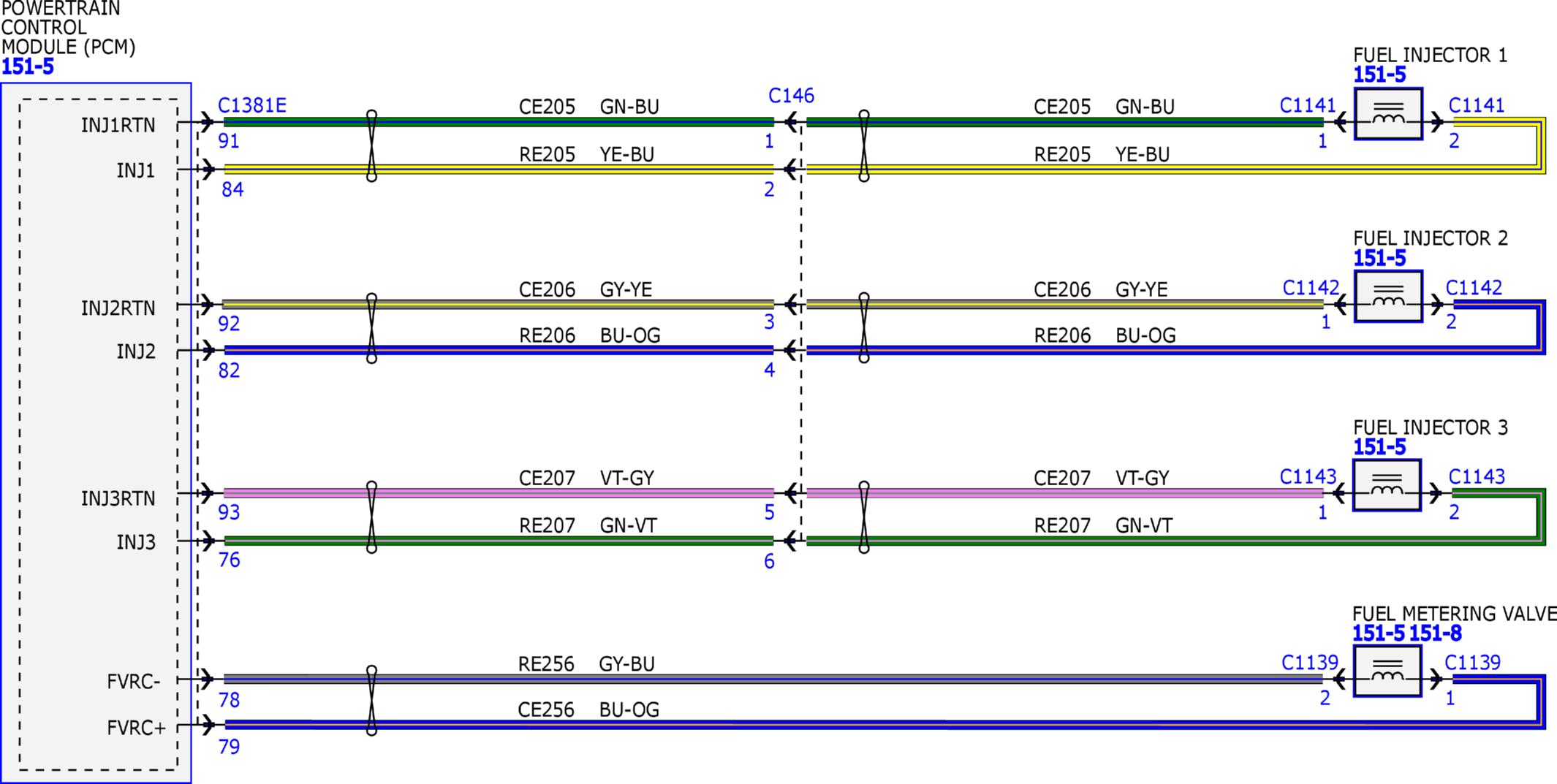

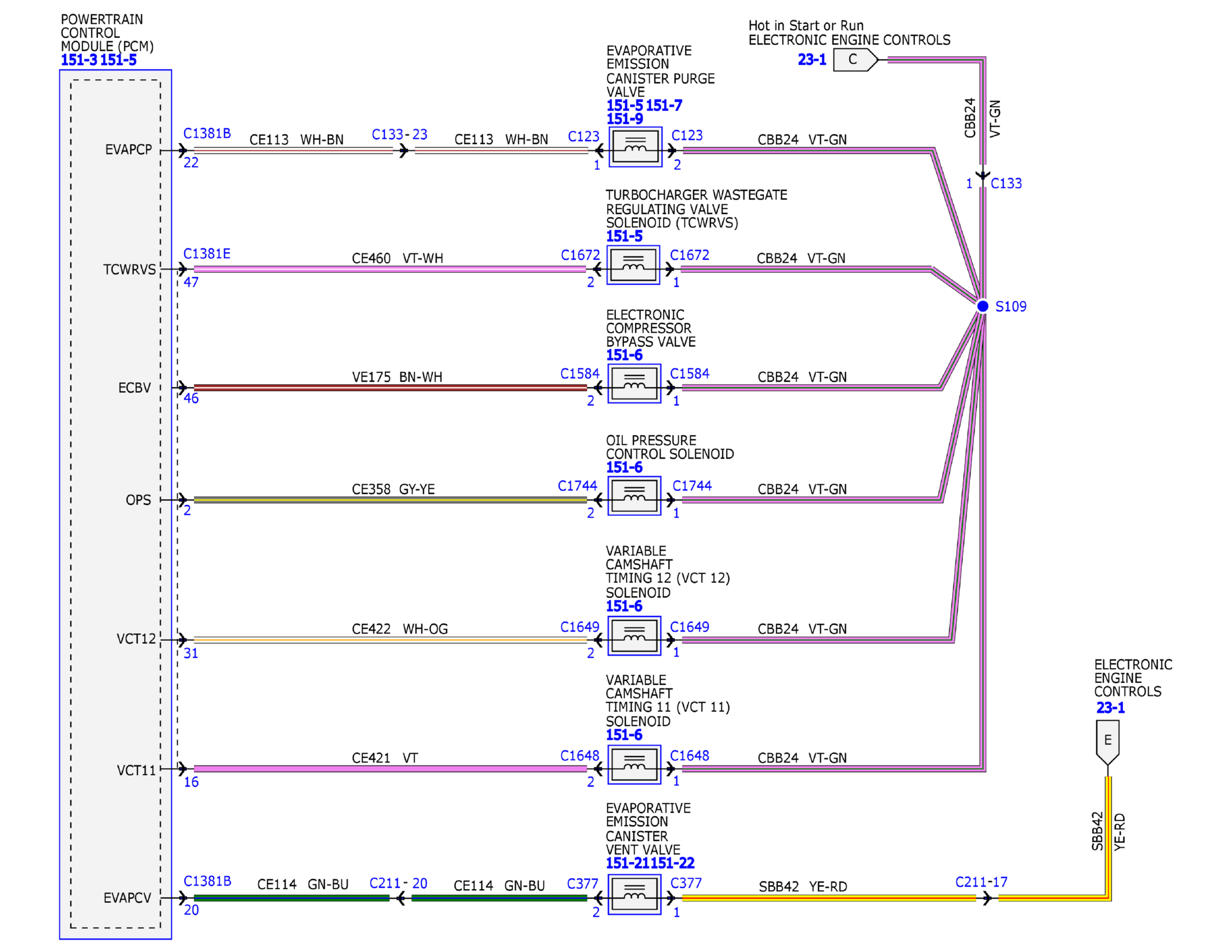

Fig 1: Electronic Engine Controls - 1.0L GTDI Wiring Diagram (1 of 11)

Courtesy of FORD MOTOR COMPANY

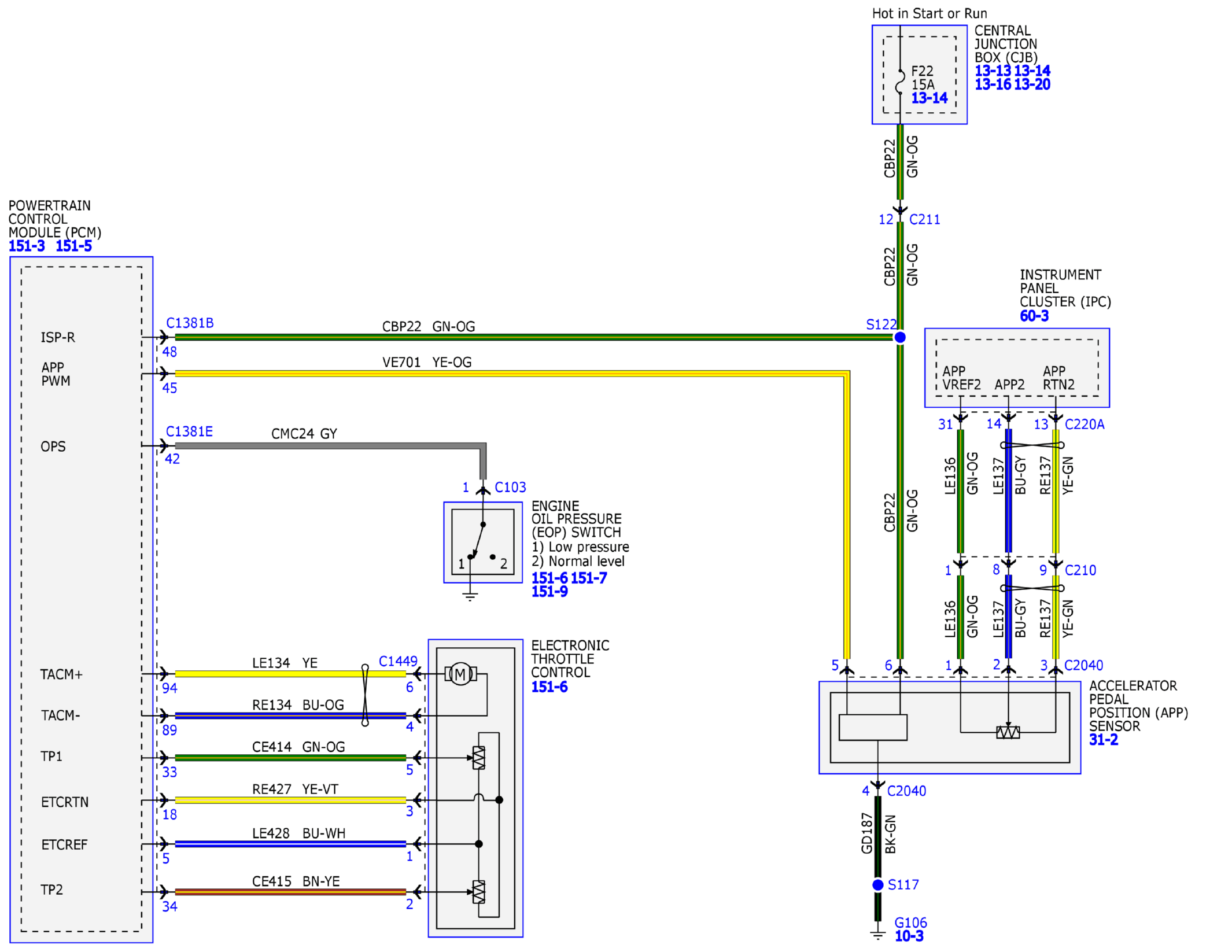

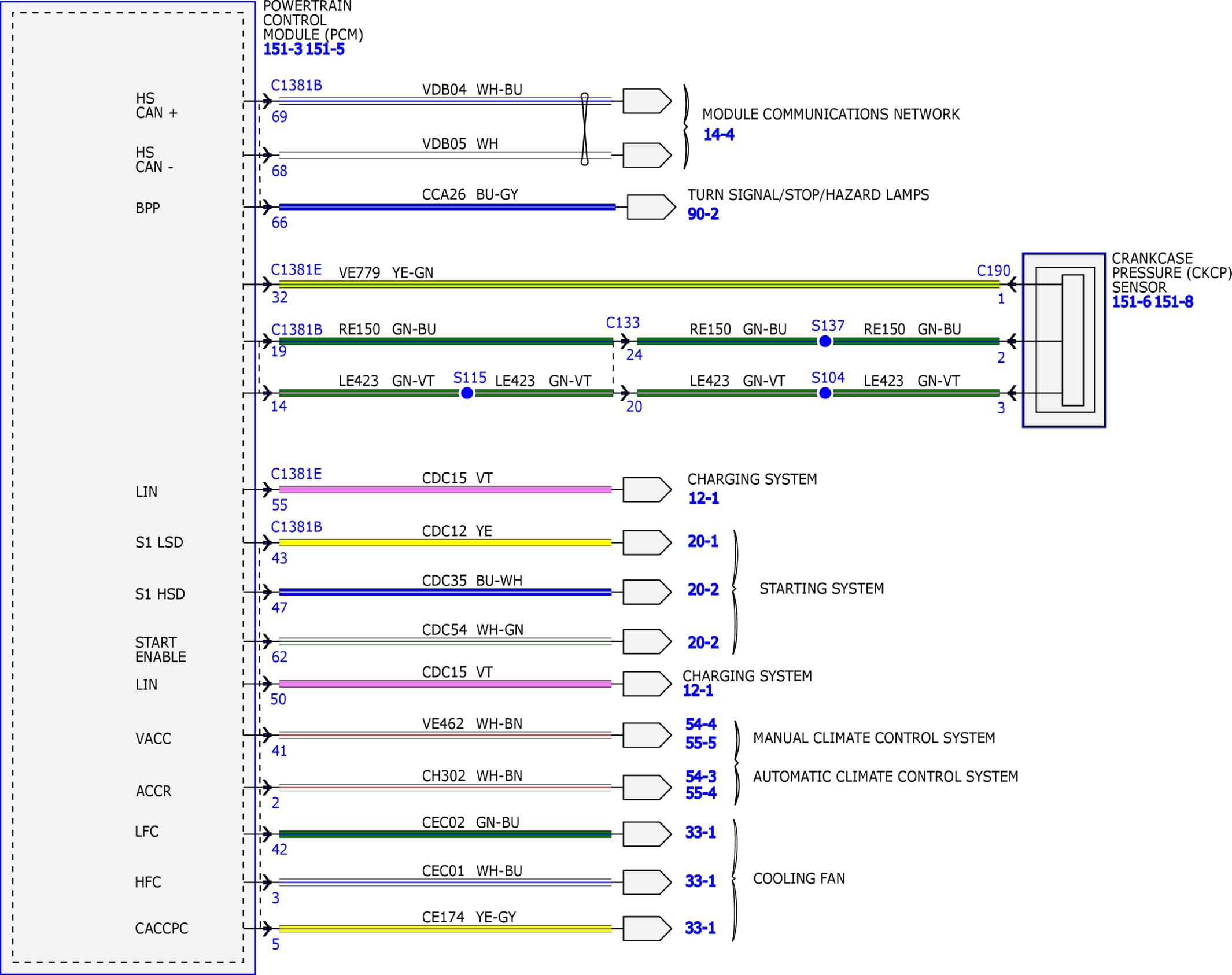

Fig 2: Electronic Engine Controls - 1.0L GTDI Wiring Diagram (2 of 11)

Courtesy of FORD MOTOR COMPANY

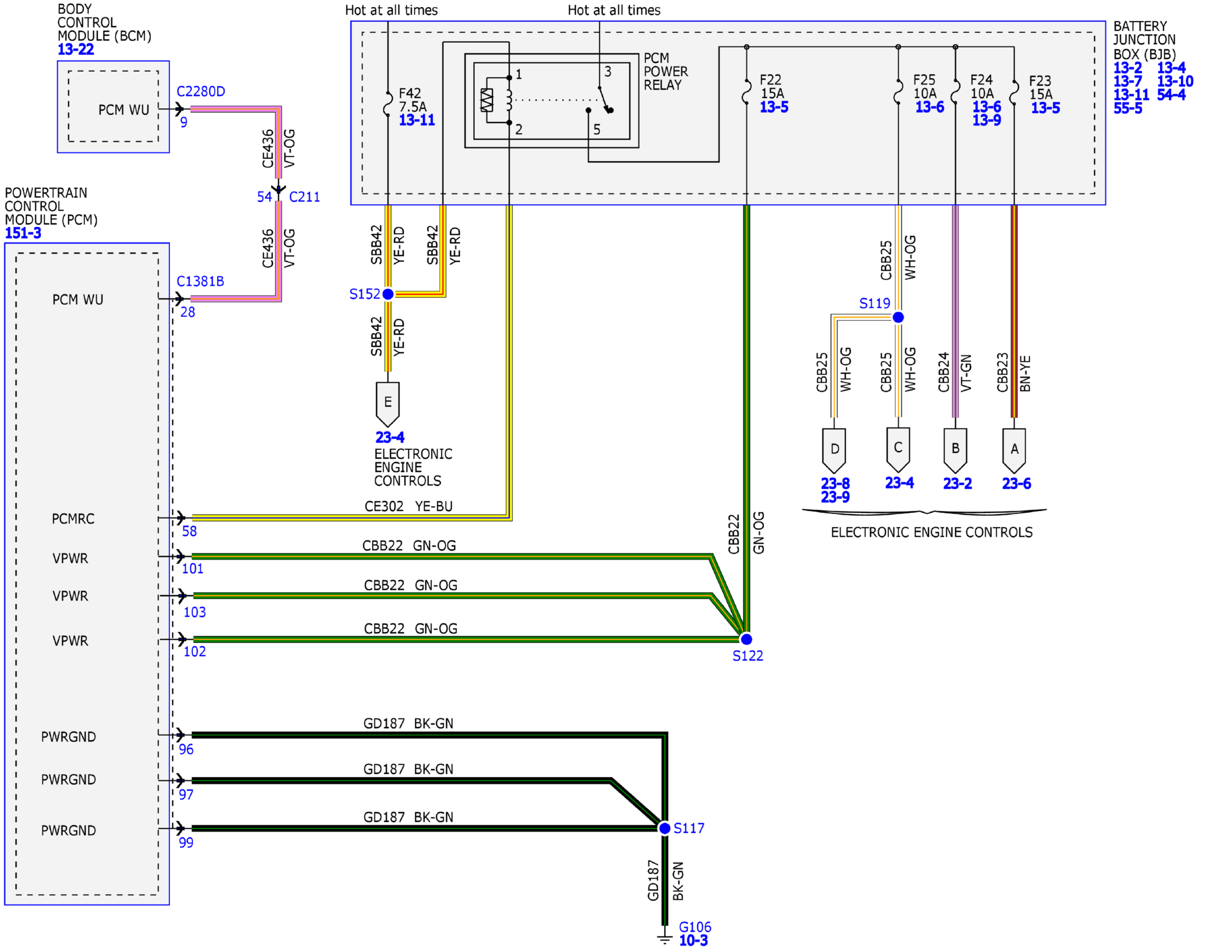

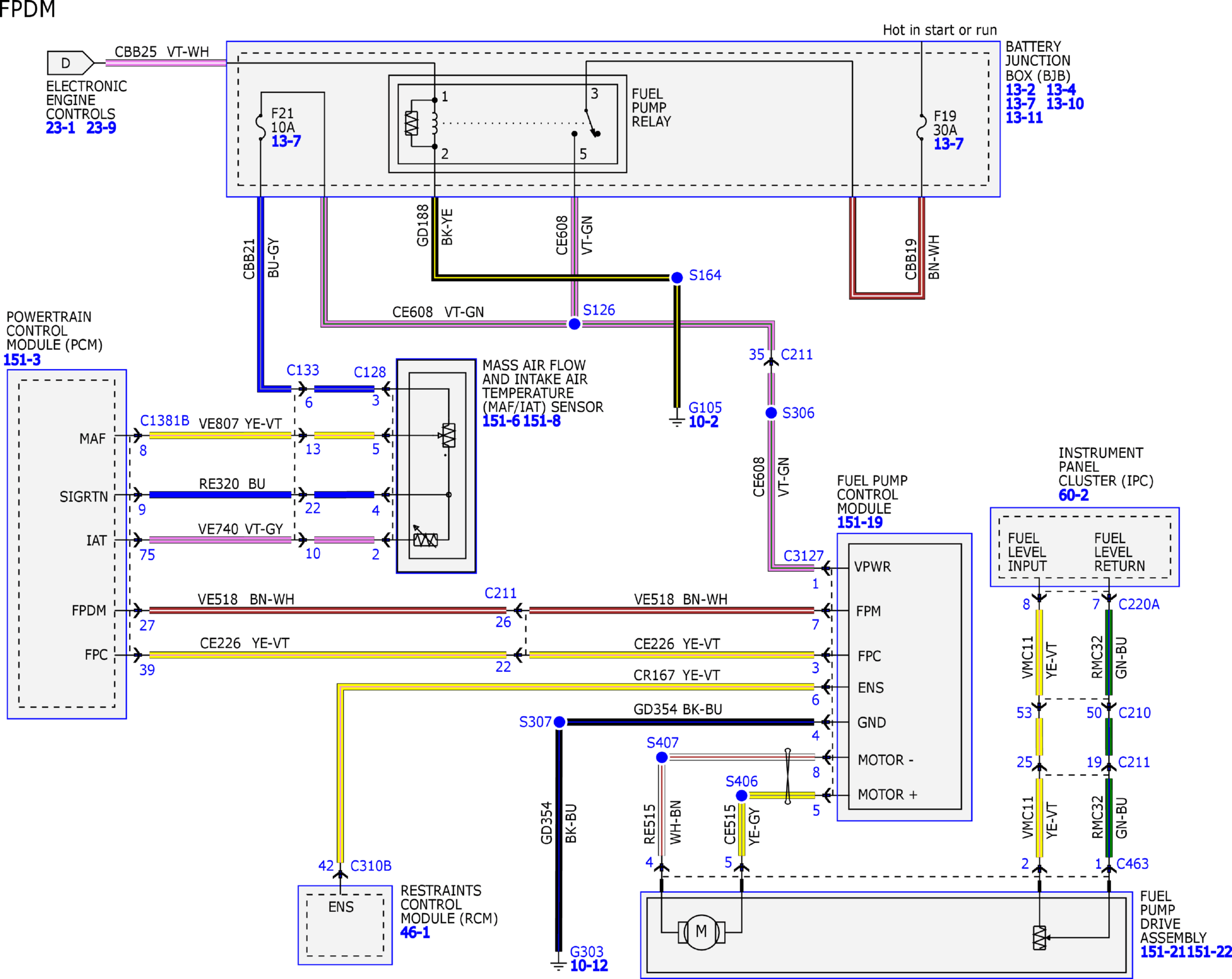

Fig 3: Electronic Engine Controls - 1.0L GTDI Wiring Diagram (3 of 11)

Courtesy of FORD MOTOR COMPANY

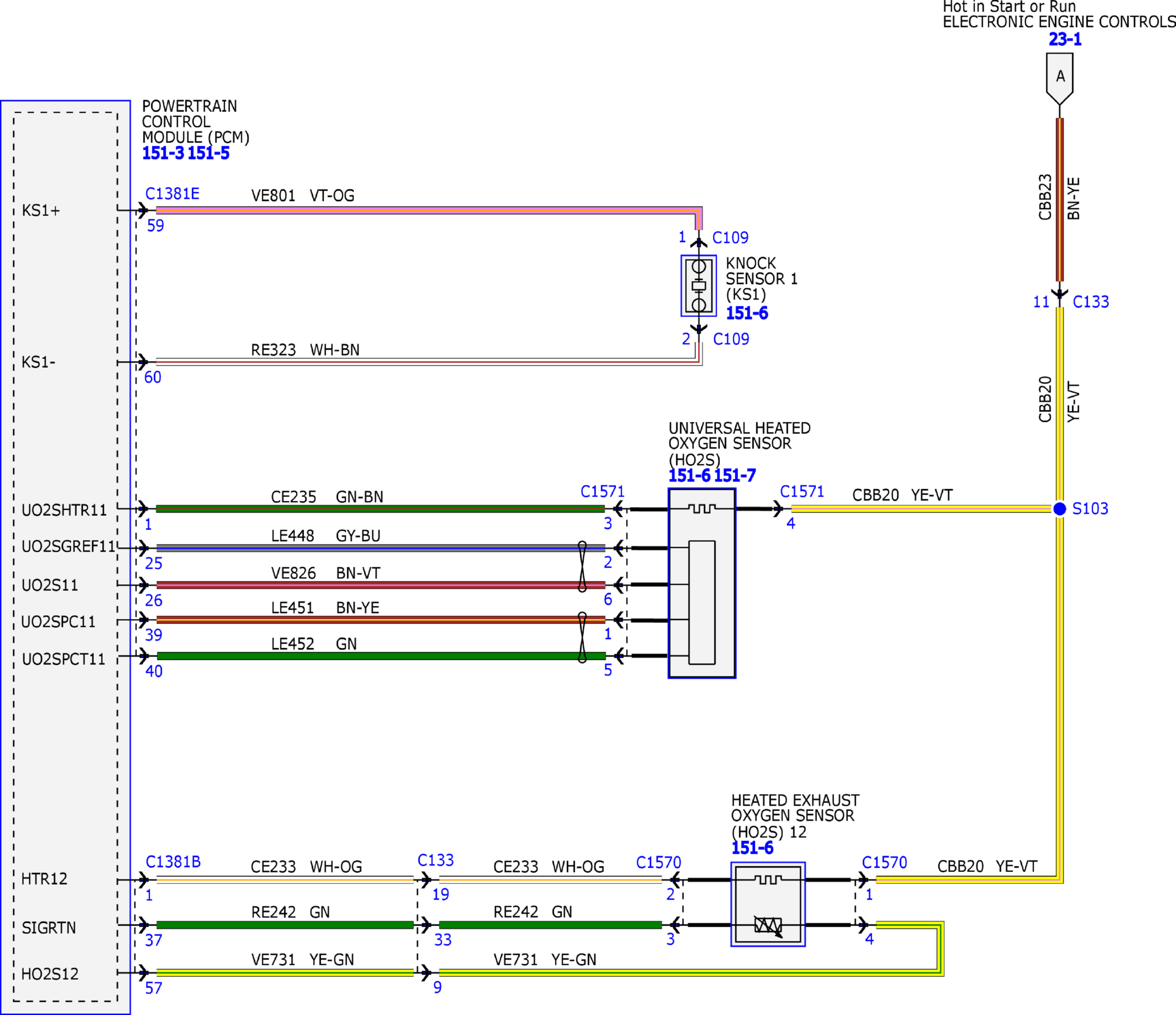

Fig 4: Electronic Engine Controls - 1.0L GTDI Wiring Diagram (4 of 11)

Courtesy of FORD MOTOR COMPANY

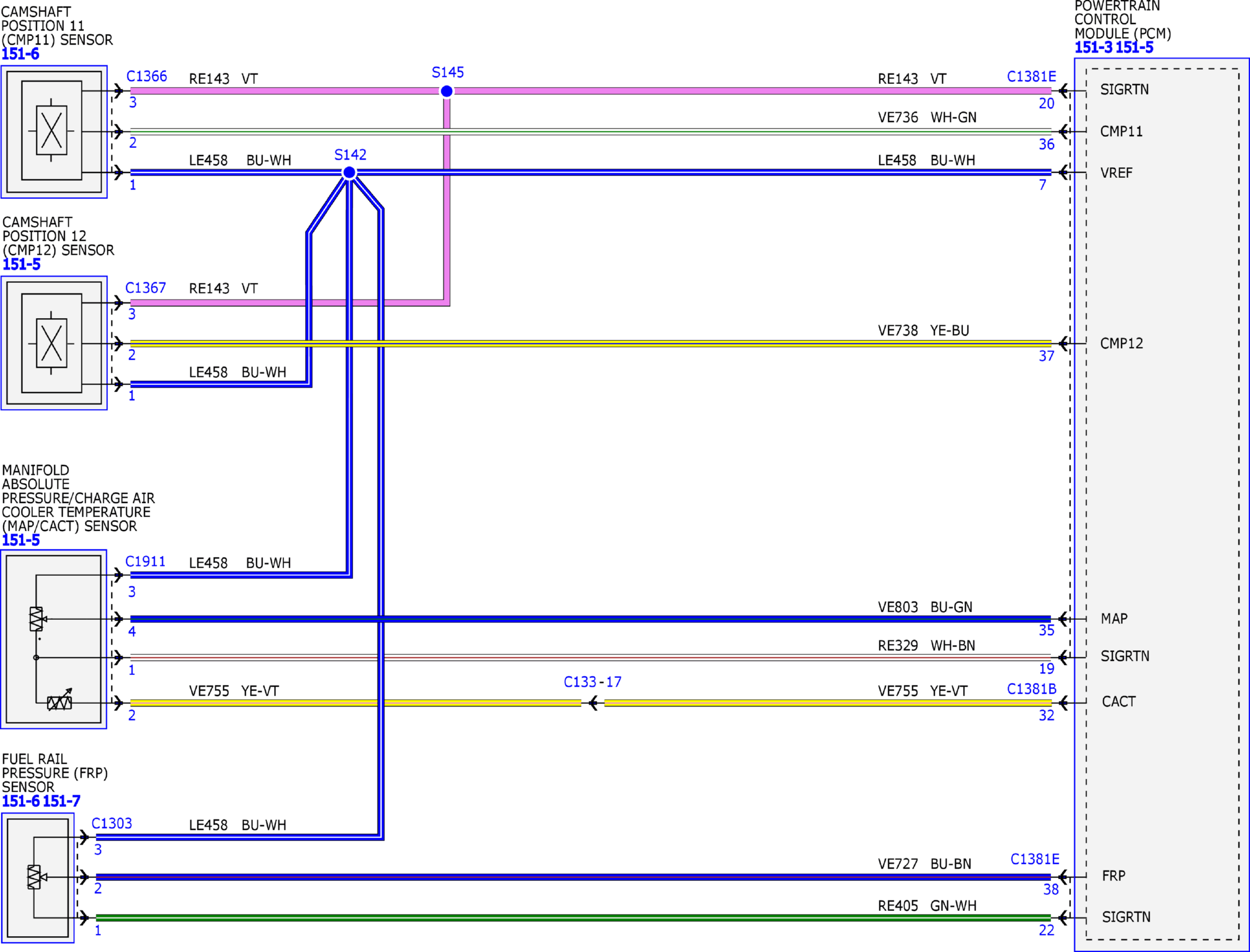

Fig 5: Electronic Engine Controls - 1.0L GTDI Wiring Diagram (5 of 11)

Courtesy of FORD MOTOR COMPANY

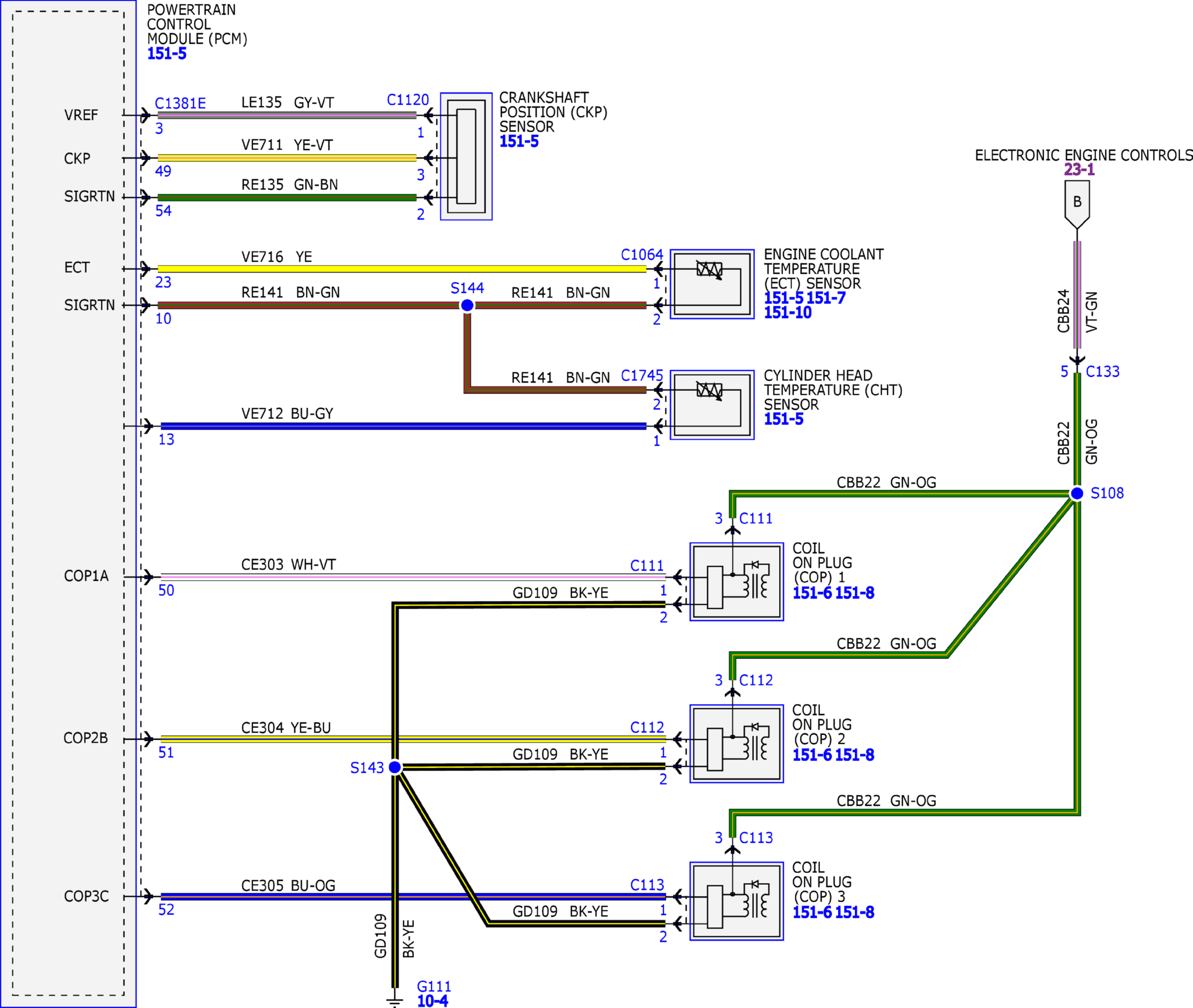

Fig 6: Electronic Engine Controls - 1.0L GTDI Wiring Diagram (6 of 11)

Courtesy of FORD MOTOR COMPANY

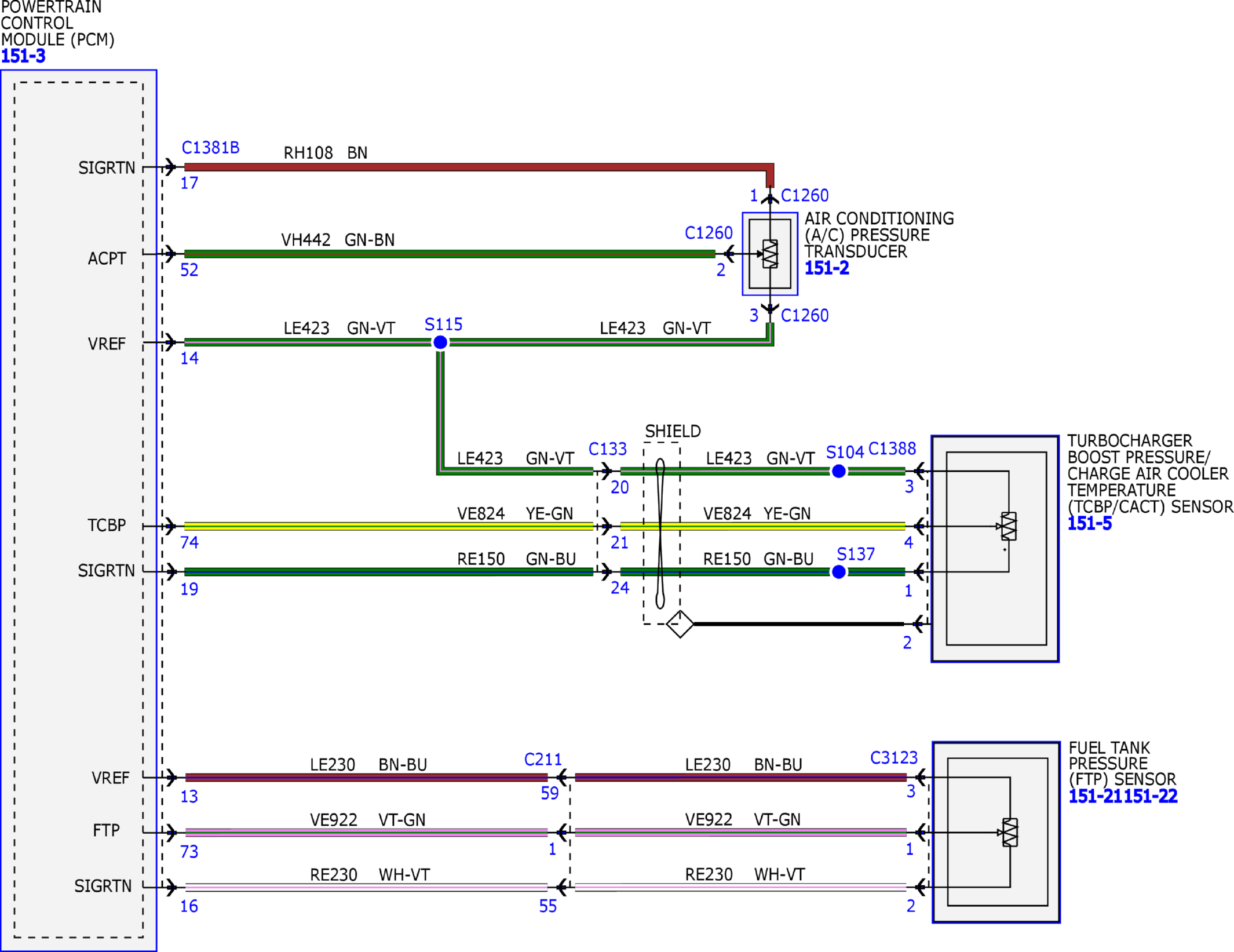

Fig 7: Electronic Engine Controls - 1.0L GTDI Wiring Diagram (7 of 11)

Courtesy of FORD MOTOR COMPANY

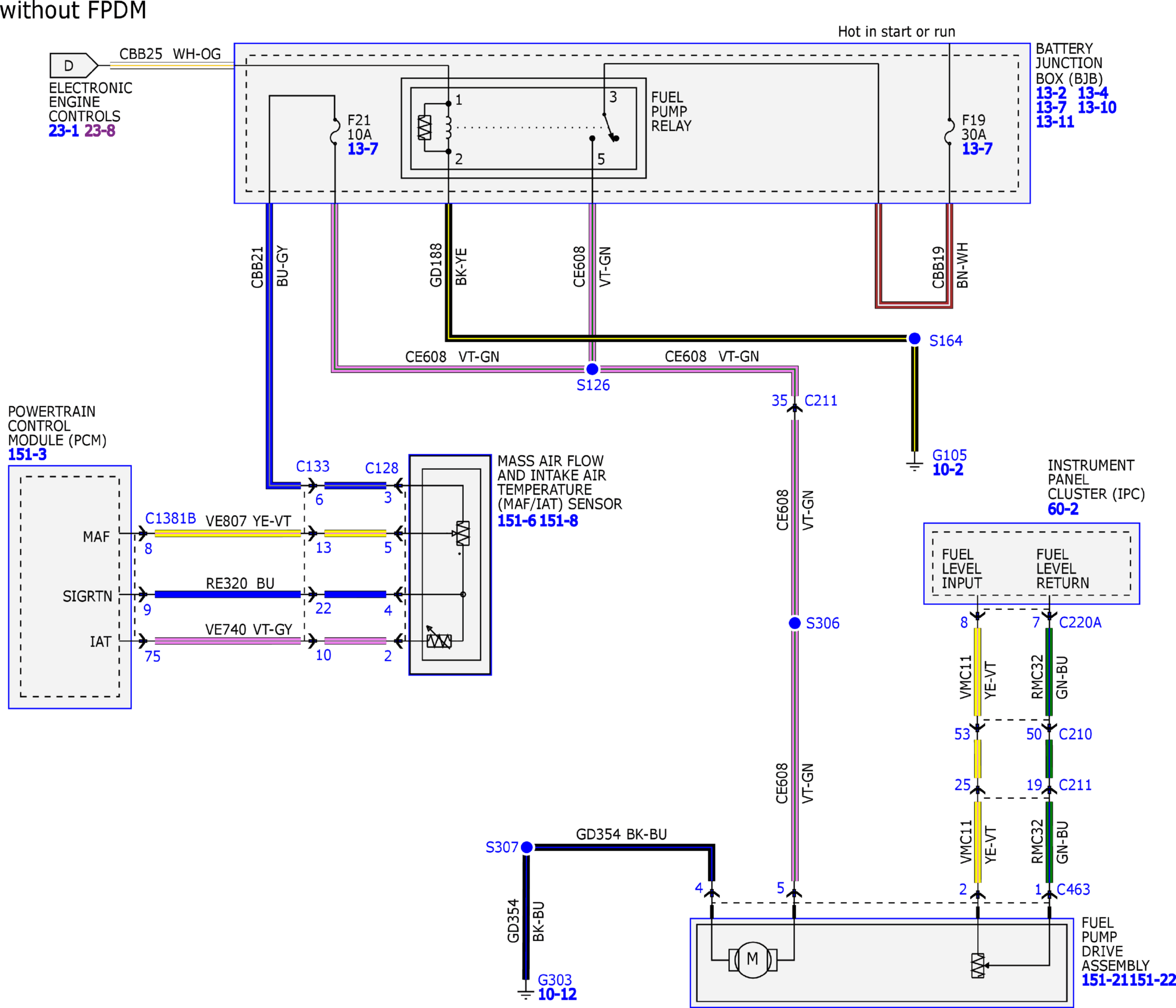

Fig 8: Electronic Engine Controls - 1.0L GTDI Wiring Diagram (8 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls - 1.0L GTDI Wiring Diagram (9 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls - 1.0L GTDI Wiring Diagram (10 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls - 1.0L GTDI Wiring Diagram (11 of 11)

Courtesy of FORD MOTOR COMPANY
