Connector End View (C1918) - COOLANT BYPASS SOLENOID VALVE

Connector:C1918

Description

COOLANT BYPASS SOLENOID VALVE

Color

Harness

12A522

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE167 (YE-OG)	18	CTRL MOD. - POWERTRAIN # BYPASS SOLENOID VALVE
2	CBB25 (WH-OG)	18	FUSE - 25 OR CIRCUIT BREAKER

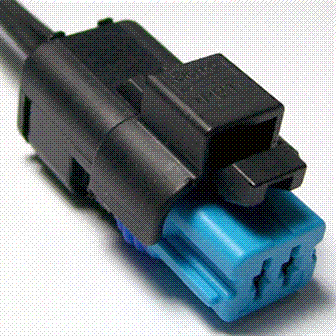

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1352

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-ZA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Solenoid - EGR Cooler Bypass

Valve - Coolant
