Turbocharger Oil Supply Tube LH: Installation

1.

Inspect the spring lock fitting and replace as needed.
Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: Do not to exceed 26 Nm maximum: 450°

GFD123358

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Listen for audible click when installing the oil supply tube into the quick connect fitting.

Connect the turbocharger oil supply tube to the spring lock coupling. REFER to: Spring Lock Couplings .

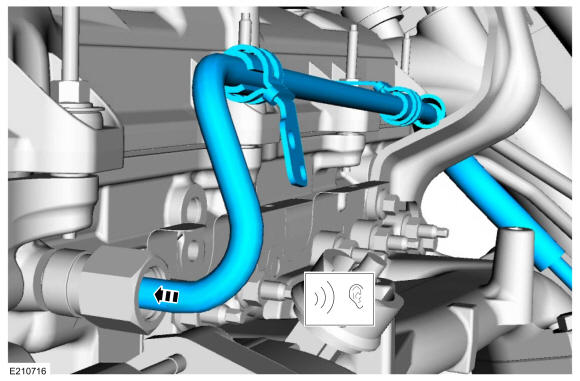

GFD123359

Courtesy of FORD MOTOR COMPANY

3.

Install the turbocharger oil supply tube secondary latch.

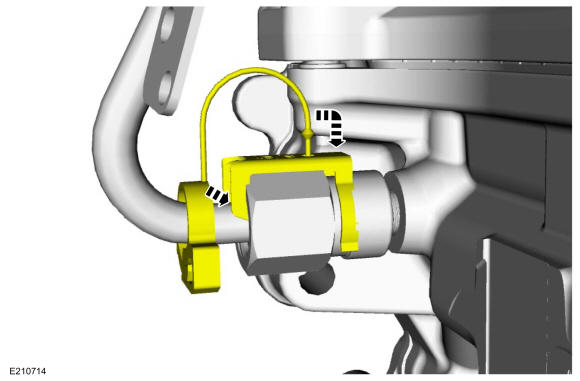

GFD123360

Courtesy of FORD MOTOR COMPANY

4.

Install and tighten the turbocharger coolant tube bracket nut. Attach the wire harness retainer.
Torque

: 71 lb.in (8 Nm)

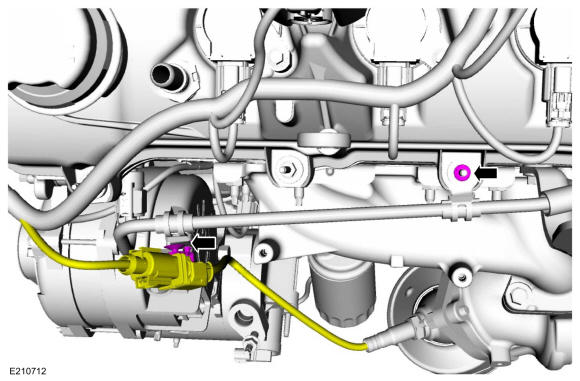

GFD123355

Courtesy of FORD MOTOR COMPANY

5.

Install and tighten the engine appearance cover ballstud.
Torque

: 53 lb.in (6 Nm)

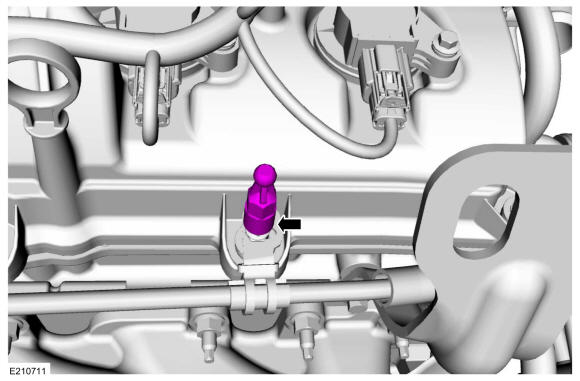

GFD123354

Courtesy of FORD MOTOR COMPANY

6.

Install the new turbocharger oil supply tube filter and the new turbocharger oil supply tube linked sealing washer.

GFD123347

Courtesy of FORD MOTOR COMPANY

7.

Install the turbocharger oil supply tube and then tighten the new turbocharger oil supply tube bolt.
Torque:

Stage 1: 159 lb.in (18 Nm)

Stage 2: 90°

GFD123348

Courtesy of FORD MOTOR COMPANY

8.

Install the turbocharger heat shield, then install and tighten the turbocharger heat shield bolts.
Torque

: 106 lb.in (12 Nm)

GFD123335

Courtesy of FORD MOTOR COMPANY

9.

Connect the wire harness retainer.

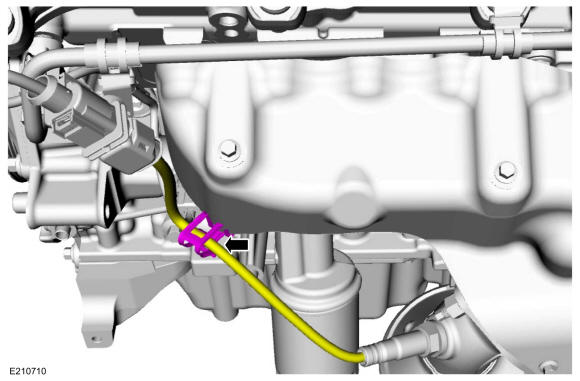

GFD123352

Courtesy of FORD MOTOR COMPANY

10.

Remove the oil fill cap, then install the engine appearance cover. Install the oil fill cap.

GFD123243

Courtesy of FORD MOTOR COMPANY

11.

Check and top off the engine oil as needed. REFER to: Specifications .
