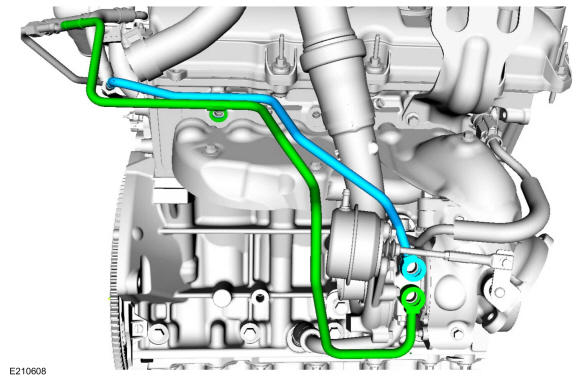

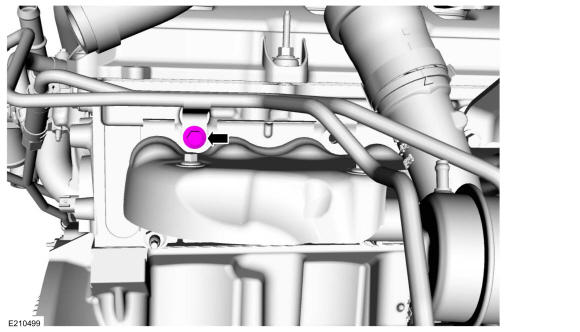

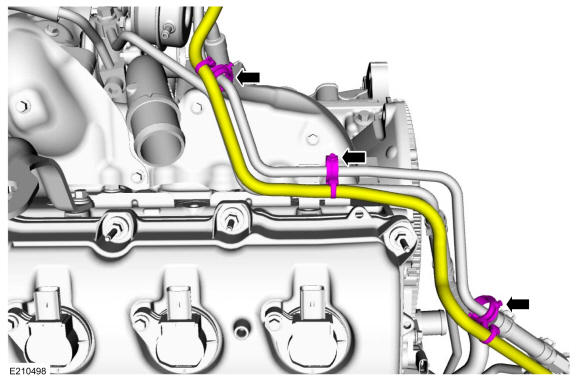

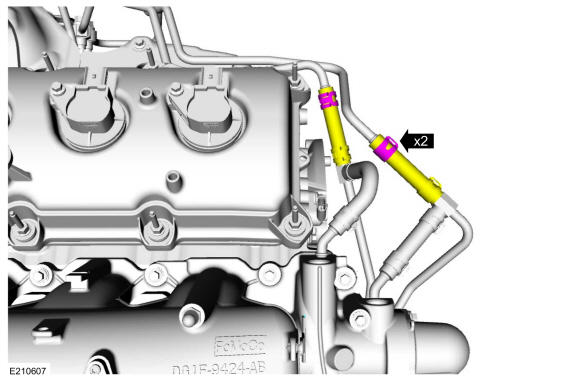

Turbocharger Coolant Supply Tube RH: Removal

NOTE: Whenever turbocharger air intake system components are removed, always cover open ports to protect from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All components should be inspected and cleaned, if necessary, prior to installation or reassembly.

NOTE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

1.

Remove the oil fill cap, then remove the engine appearance cover. Install the oil fill cap.

Courtesy of FORD MOTOR COMPANY

2.

Drain the cooling system. REFER to: Cooling System Draining, Vacuum Filling and Bleeding .

3.

Remove the Catalytic Converter RH. REFER to: Catalytic Converter RH .

4.

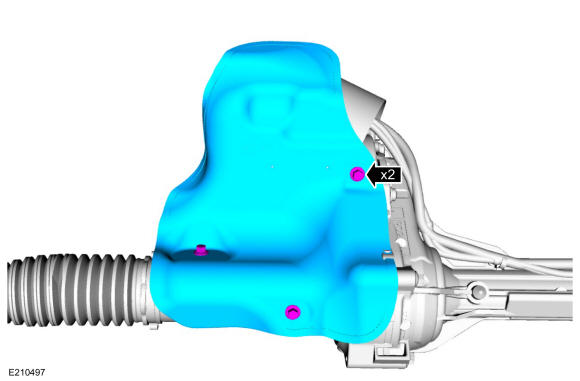

Remove the steering heat shield bolts and then remove the steering heat shield.

Courtesy of FORD MOTOR COMPANY

5.

Remove the air cleaner assembly and the air cleaner outlet pipe. REFER to: Air Cleaner . REFER to: Air Cleaner Outlet Pipe .

6.

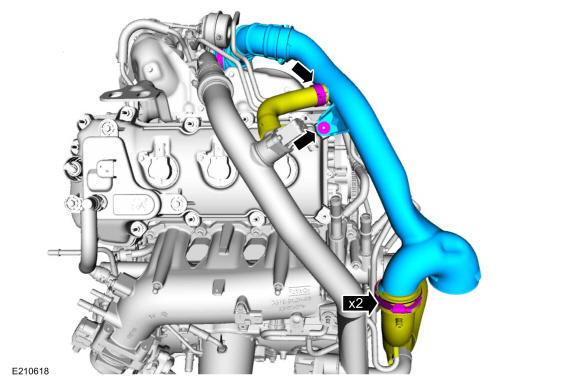

Remove the turbocharger inlet pipe retaining nut. Disconnect the turbocharger bypass hose. Loosen the turbocharger inlet pipe clamp, disconnect the turbocharger inlet pipe and then remove the turbocharger inlet pipe.
