Turbocharger Coolant Supply Tube LH: Installation

1.

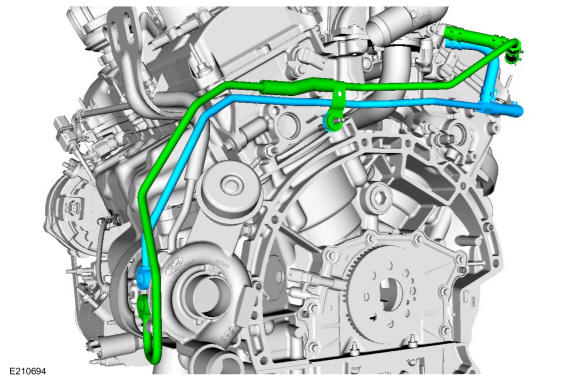

Install the turbocharger coolant supply tube and then install the turbocharger return tube.

GFD123327

Courtesy of FORD MOTOR COMPANY

2.

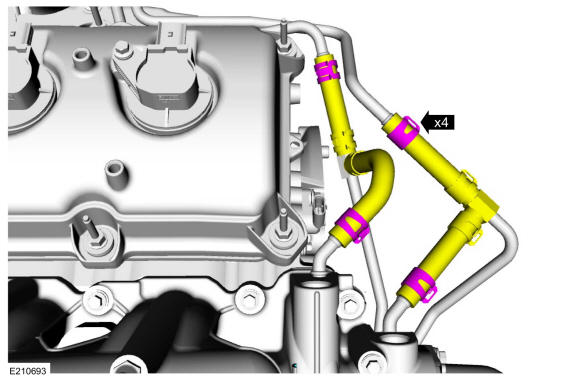

Connect the turbocharger coolant tube hoses and clamps.

GFD123326

Courtesy of FORD MOTOR COMPANY

3.

Install the new turbocharger coolant tube linked sealing washers.

GFD123328

Courtesy of FORD MOTOR COMPANY

4.

Install the turbocharger coolant tubes, then install and tighten the new turbocharger coolant tube bolts.
Torque:

Stage 1: 106 lb.in (12 Nm)

Stage 2: 60°

GFD123329

Courtesy of FORD MOTOR COMPANY

5.

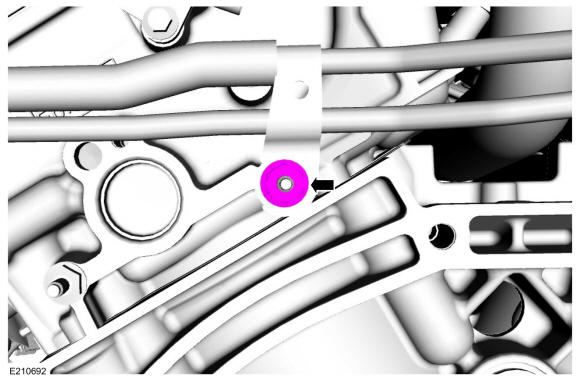

Install and tighten the turbocharger coolant tube bracket nut.
Torque

: 106 lb.in (12 Nm)

GFD123308

Courtesy of FORD MOTOR COMPANY

6.

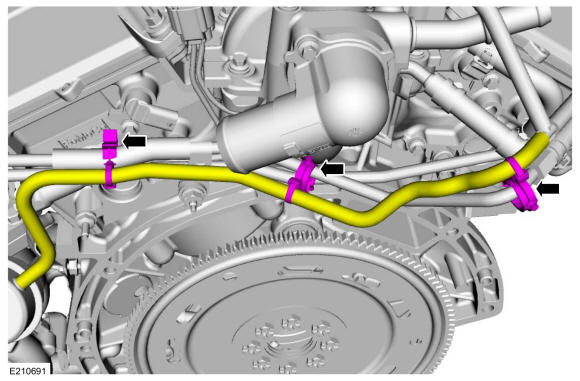

Attach the harness retainers.

GFD123307

Courtesy of FORD MOTOR COMPANY

7.

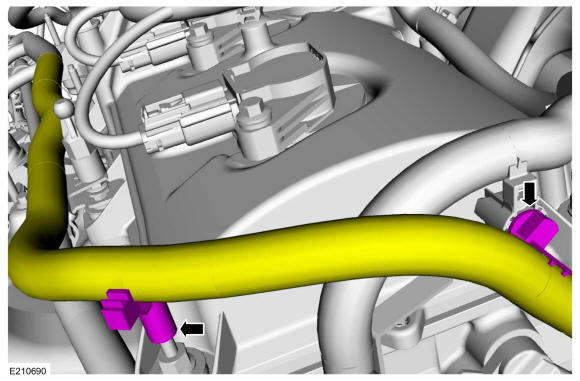

Attach the harness retainers.

GFD123306

Courtesy of FORD MOTOR COMPANY

8.

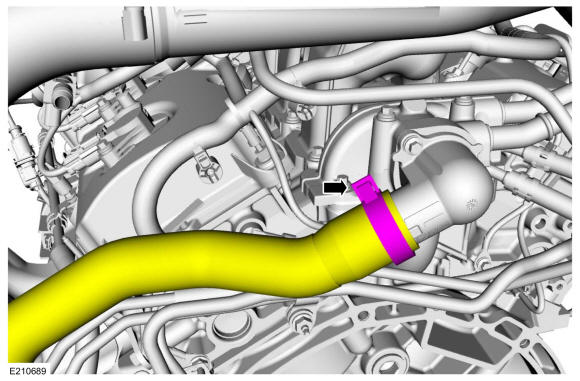

Install the coolant hose and clamp.

GFD123305

Courtesy of FORD MOTOR COMPANY

9.
1. 1.

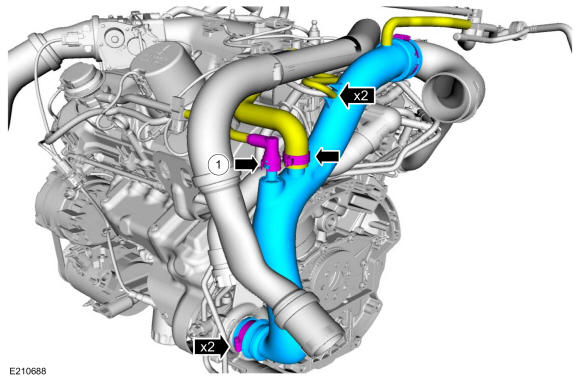

  Connect the quick release coupling. REFER to: Quick Release Coupling .
- Install the turbocharger inlet pipe and then tighten the turbocharger inlet pipe clamps. Connect the turbocharger bypass hose. Connect the vacuum hoses.
  Torque

  : 44 lb.in (5 Nm)

GFD123304

Courtesy of FORD MOTOR COMPANY

10.

Install the air cleaner assembly and the air cleaner outlet pipe. REFER to: Air Cleaner . REFER to: Air Cleaner Outlet Pipe .

11.

Fill the cooling system. REFER to: Cooling System Draining, Vacuum Filling and Bleeding .

12.

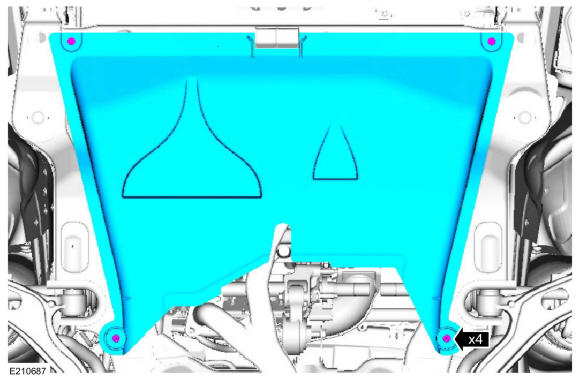

If equipped, install the underbody splash shield, then install the underbody splash shield fasteners.

GFD123303

Courtesy of FORD MOTOR COMPANY

13.

Remove the oil fill cap, then install the engine appearance cover. Install the oil fill cap.

GFD123243

Courtesy of FORD MOTOR COMPANY
