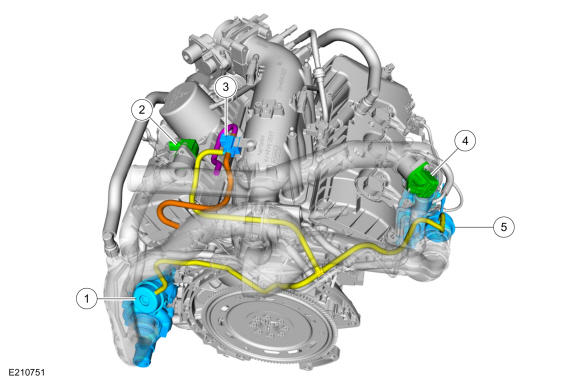

3.5L EcoBoost

GFD123302Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger - left
2 Turbocharger bypass valve - left
3 Wastegate control valve solenoid
4 Turbocharger bypass valve - right
5 Turbocharger - right
