Adjustable Pedal

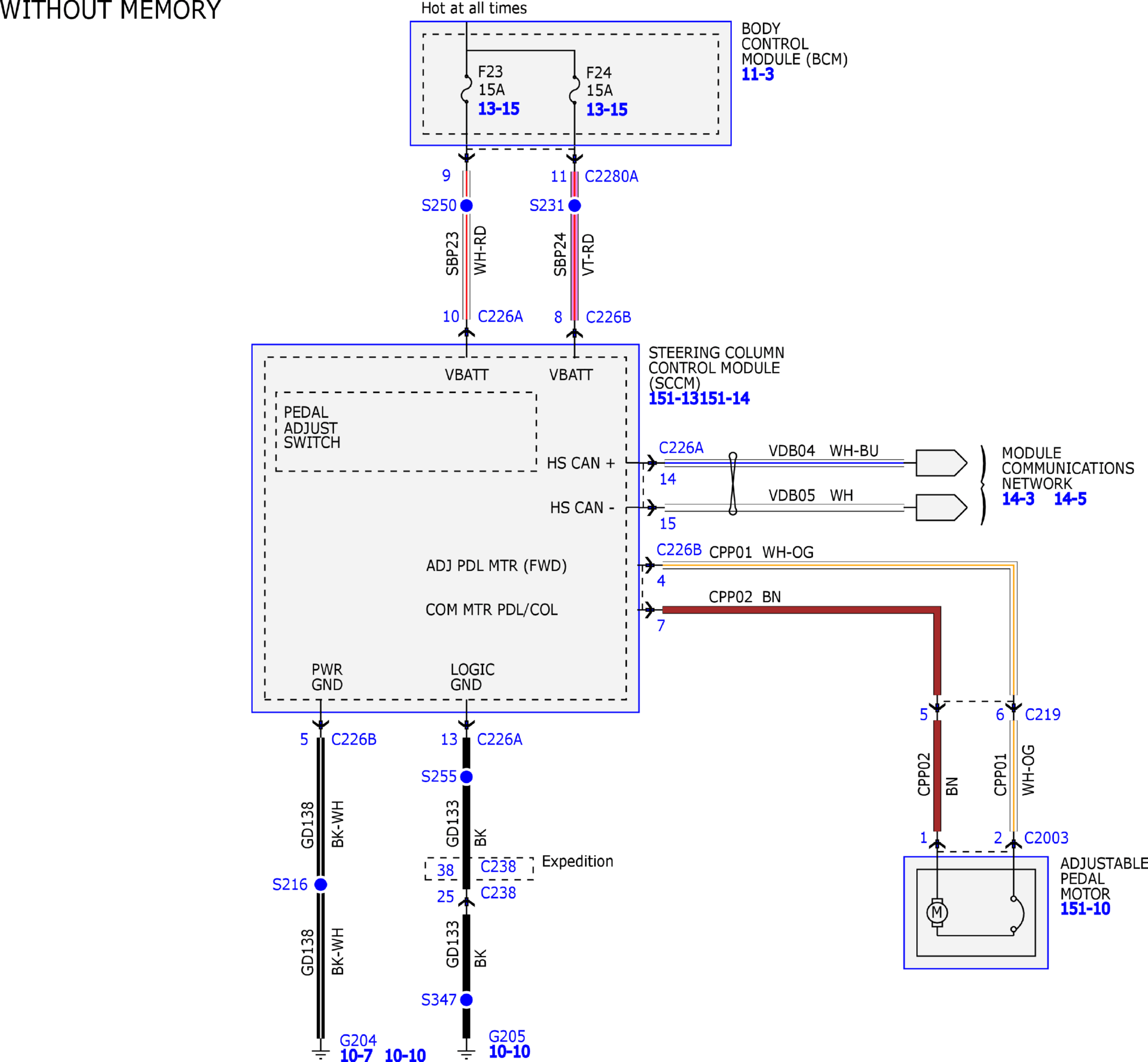

Fig 1: Adjustable Pedal Wiring Diagram (1 of 3)
GFDW59956Courtesy of FORD MOTOR COMPANY

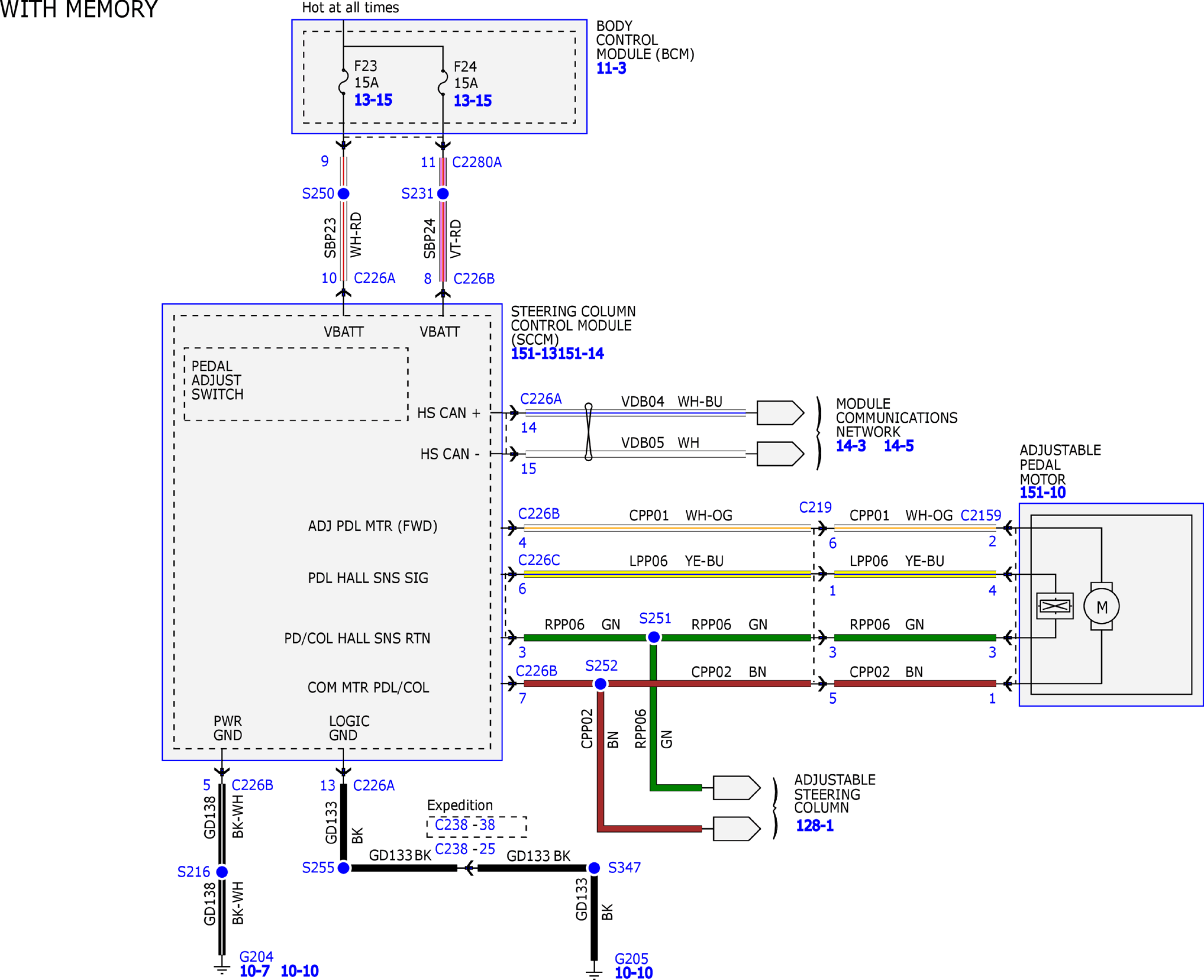

Fig 2: Adjustable Pedal Wiring Diagram (2 of 3)
GFDW59957Courtesy of FORD MOTOR COMPANY
Fig 3: Adjustable Pedal Wiring Diagram (3 of 3)
GFDW59958Courtesy of FORD MOTOR COMPANY
