Instrument Cluster Finish Panel - Navigator

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Courtesy of FORD MOTOR COMPANY

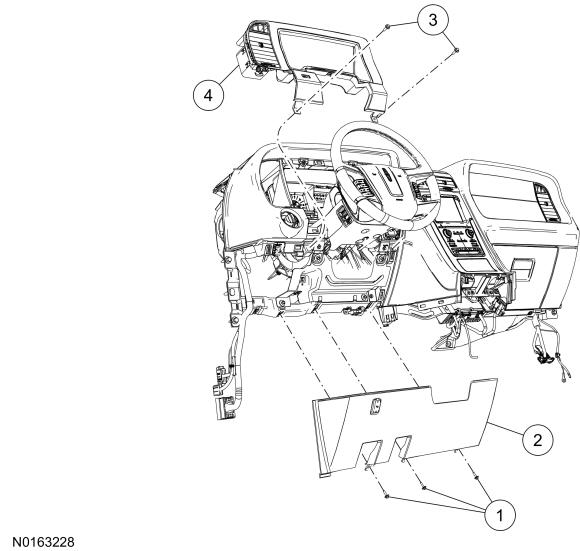

Item	Part Number	Description
1	W707628	Steering column opening trim panel screws (3 required)
2	04459	Steering column opening trim panel
3	W707628	Instrument cluster finish panel screw
4	04320	Instrument cluster finish panel

• 1.

  Lower the steering column to the lowest position.

• 2.

  Remove the 3 screws and the lower steering column cover.
  • Disconnect the electrical connector for the brake pedal switch (if equipped).

• 3.

  Remove the instrument cluster finish panel screw.

NOTE: Cluster finish panel removed for clarity.
NOTE: There are 2 locking tabs on the outboard register that need to be pressed before the cluster finish panel is removed.
• 4.
  Press the 2 locking tabs release the clips and remove the cluster finish panel.
  • Access the tabs from under the instrument panel.
  • Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

• 5.

  To install, reverse the removal procedure.
  • Make sure to align the trim panel retaining clips to the retaining clip holes in the instrument panel.
