Front Wheel Studs: Installation
- 1.NOTE: Make sure to use washers that have an ID that is larger than the OD of the wheel stud serrations. Use enough washers (approximately 3 to 4) to allow the wheel stud to fully seat against the hub flange.

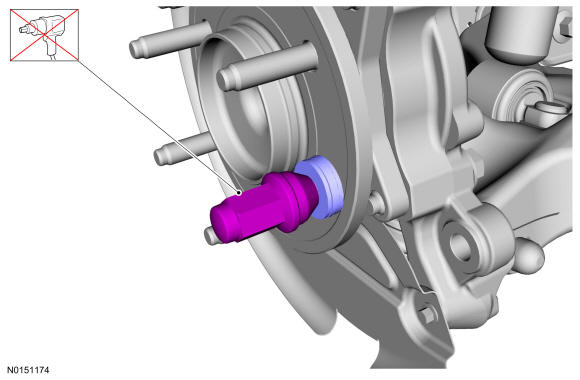

Install the wheel stud.
- Tighten the wheel nut until the wheel stud is seated against the hub flange.
- Discard the wheel nut.
- 2.
Install the brake disc. Refer to Front Disc Brake .
