Front Wheel Knuckle: Installation
- 1.NOTE: If necessary.
Position the brake disc shield and install the 3 brake disc shield bolts.
- Tighten to 17 Nm (150 lb-in).
- 2.

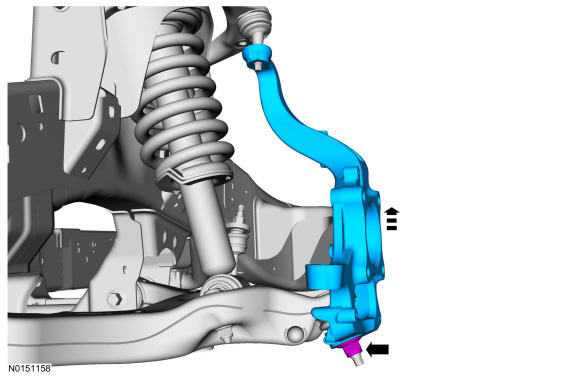

Position the wheel knuckle and install the new lower ball joint nut.- Tighten to 175 Nm (129 lb-ft).
- 4.NOTE: If equipped with dynamic suspension.
Position the height sensor arm bracket and install the height sensor arm bracket screw.
- Tighten to 20 Nm (177 lb-in).
- 5.
Position the brake hose bracket and install the brake hose bracket bolt.- Tighten to 12 Nm (106 lb-in).
- 6.
Attach the tie rod end to the wheel knuckle and install the new tie rod end nut.- Tighten to 115 Nm (85 lb-ft).
- 7.
Install the wheel bearing and wheel hub. Refer to Wheel Bearing and Wheel Hub .
