Front Ball Joint - Lower: Installation

1.

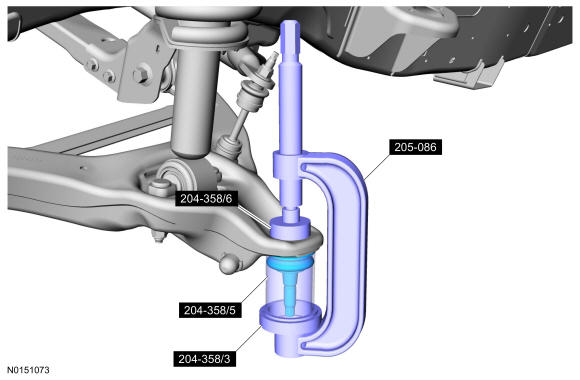

NOTE: Do not damage the lower ball joint boot when installing the C-Frame and Screw Installer/Remover and Ball Joint Installer/Remover or premature failure of the ball joint may occur.

Using Special Tool(s): Installer/Remover, C-Frame and Screw 205-086. Remover, Ball Joint 204-358/3. Remover, Ball Joint 204-358/5. Remover, Ball Joint 204-358/6, Install the ball joint.

GFD134277

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Make sure the ball joint snap ring is fully seated.

Install the new snap ring.

GFD134278

Courtesy of FORD MOTOR COMPANY

3.

Install the wheel knuckle. Refer to Wheel Knuckle .
