Drive Pinion Flange and Seal: Notes
WARNING: This page is about a different variant/trim than selected.
Special Tool(s)
| 2 Jaw Puller 205-D072 (D97L-4221-A) or equivalent | |
| Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A) | |
| Installer, Drive Pinion Flange 205-002 (TOOL-4858-E) | |
| Installer, Drive Pinion Oil Seal 205-208 (T83T-4676-A) |
Material
| Item | Specification |
| Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL | WSS-M2C942-A |

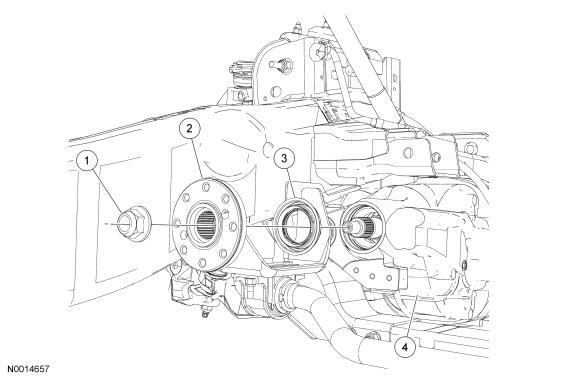

| Item | Part Number | Description |
|---|---|---|
| 1 | 389546 | Pinion nut and washer |
| 2 | 4858 | Pinion flange |
| 3 | 3N134 | Drive pinion oil seal |
| 4 | 3C202 | Axle housing |
