Vehicle Emergency Messaging System

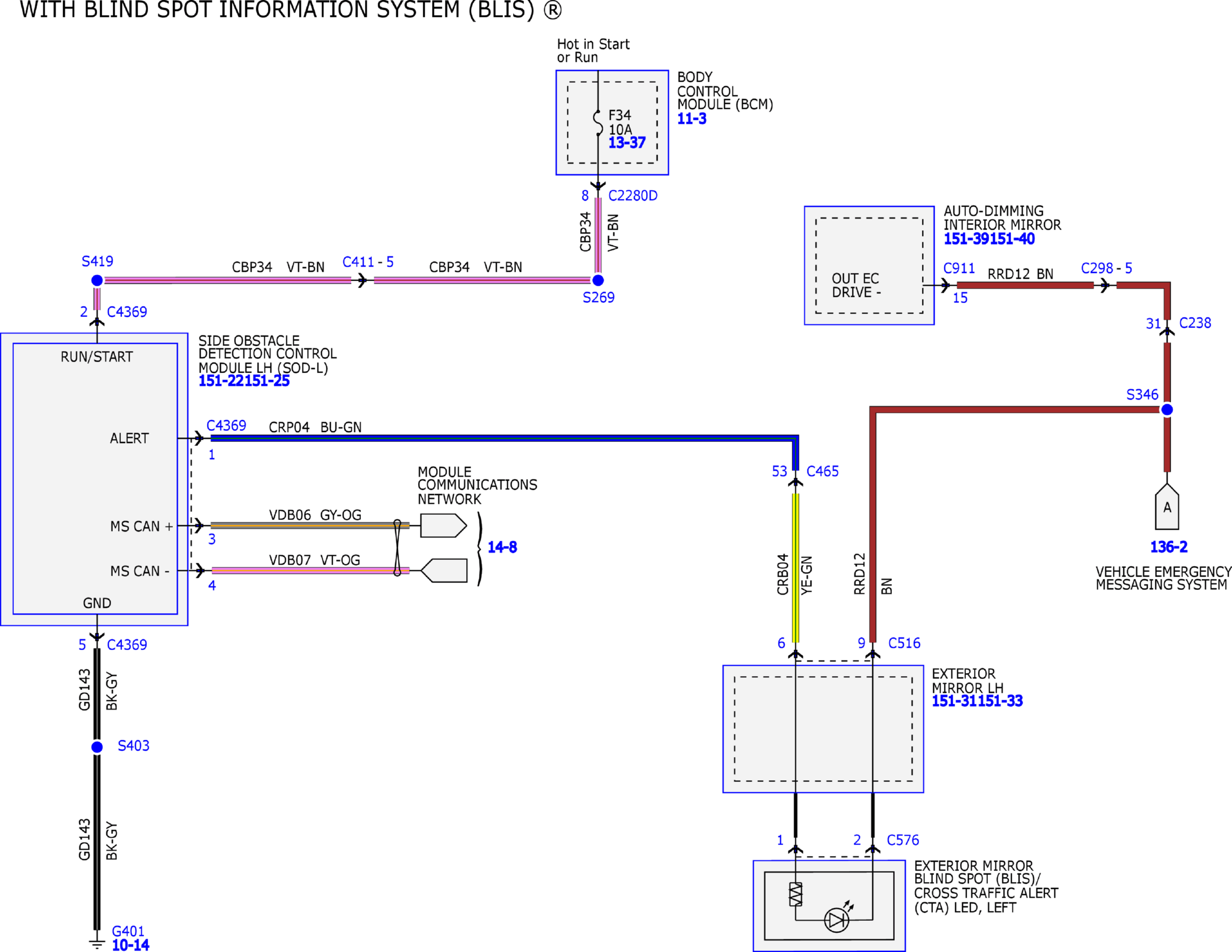

Fig 1: Vehicle Emergency Messaging System Wiring Diagram (1 of 2)
GFDW60214Courtesy of FORD MOTOR COMPANY

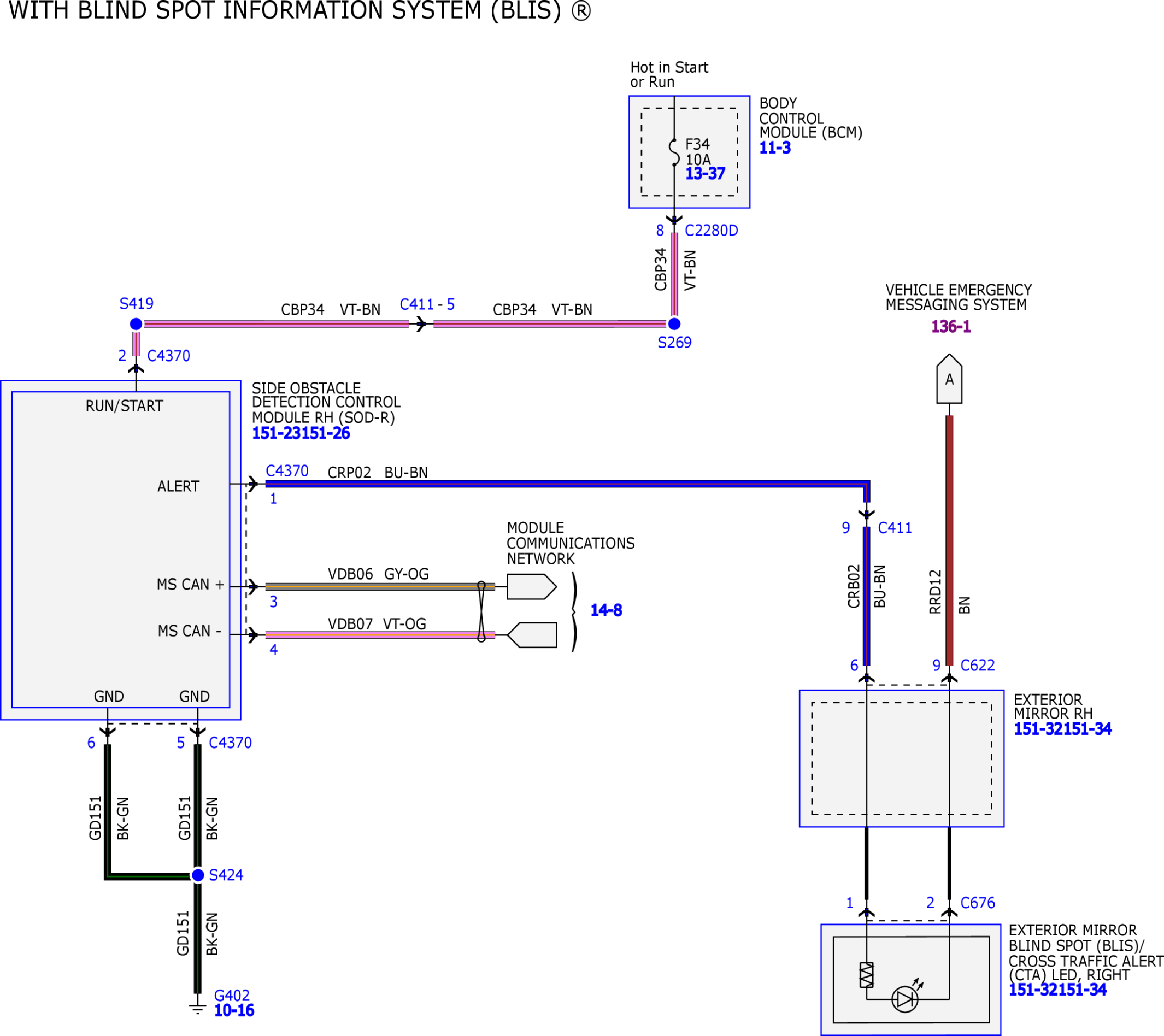

Fig 2: Vehicle Emergency Messaging System Wiring Diagram (2 of 2)
GFDW60215Courtesy of FORD MOTOR COMPANY
