Expedition XL, RWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Power Windows
Power Windows

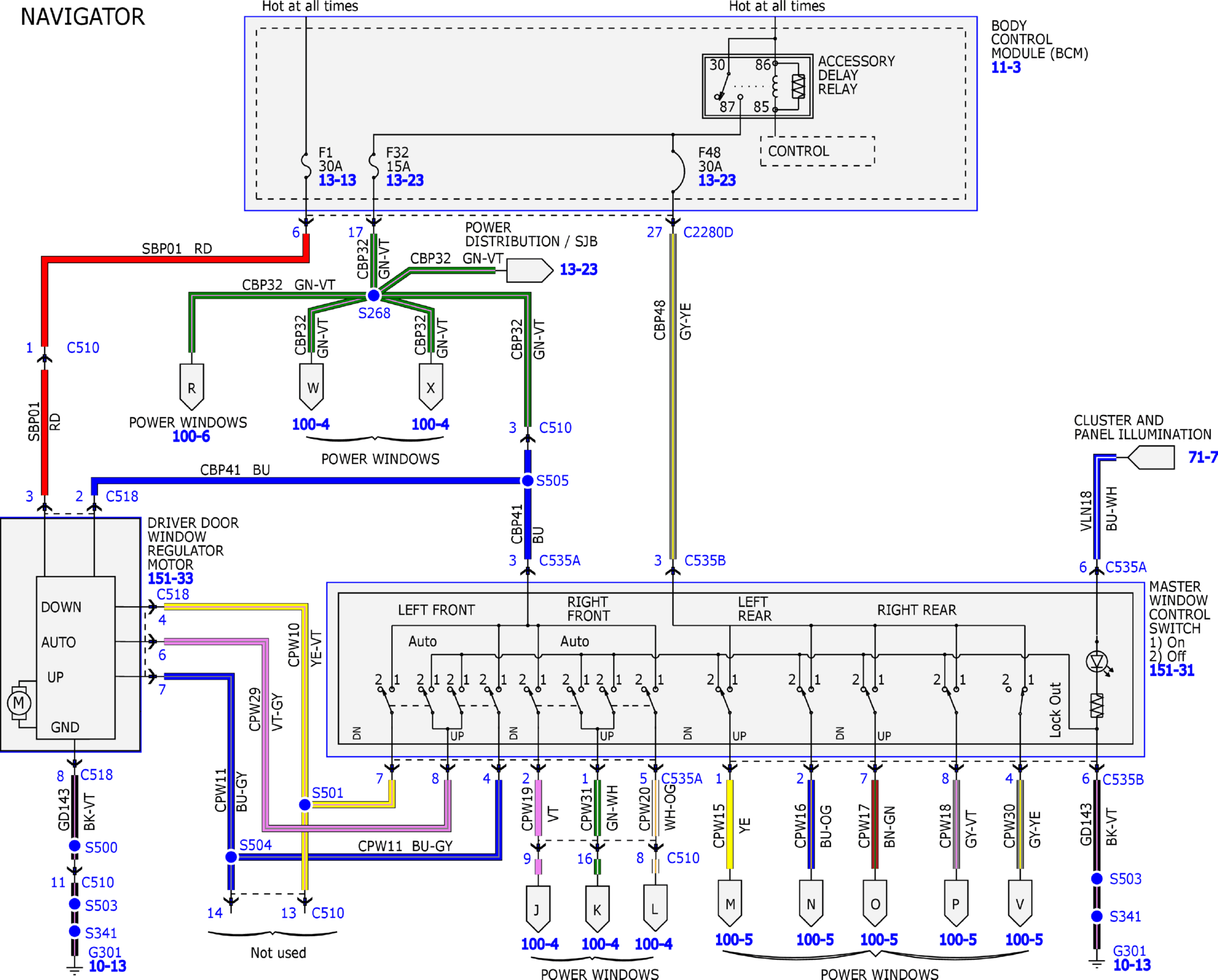

Fig 1: Power Windows Wiring Diagram (1 of 6)
Courtesy of FORD MOTOR COMPANY

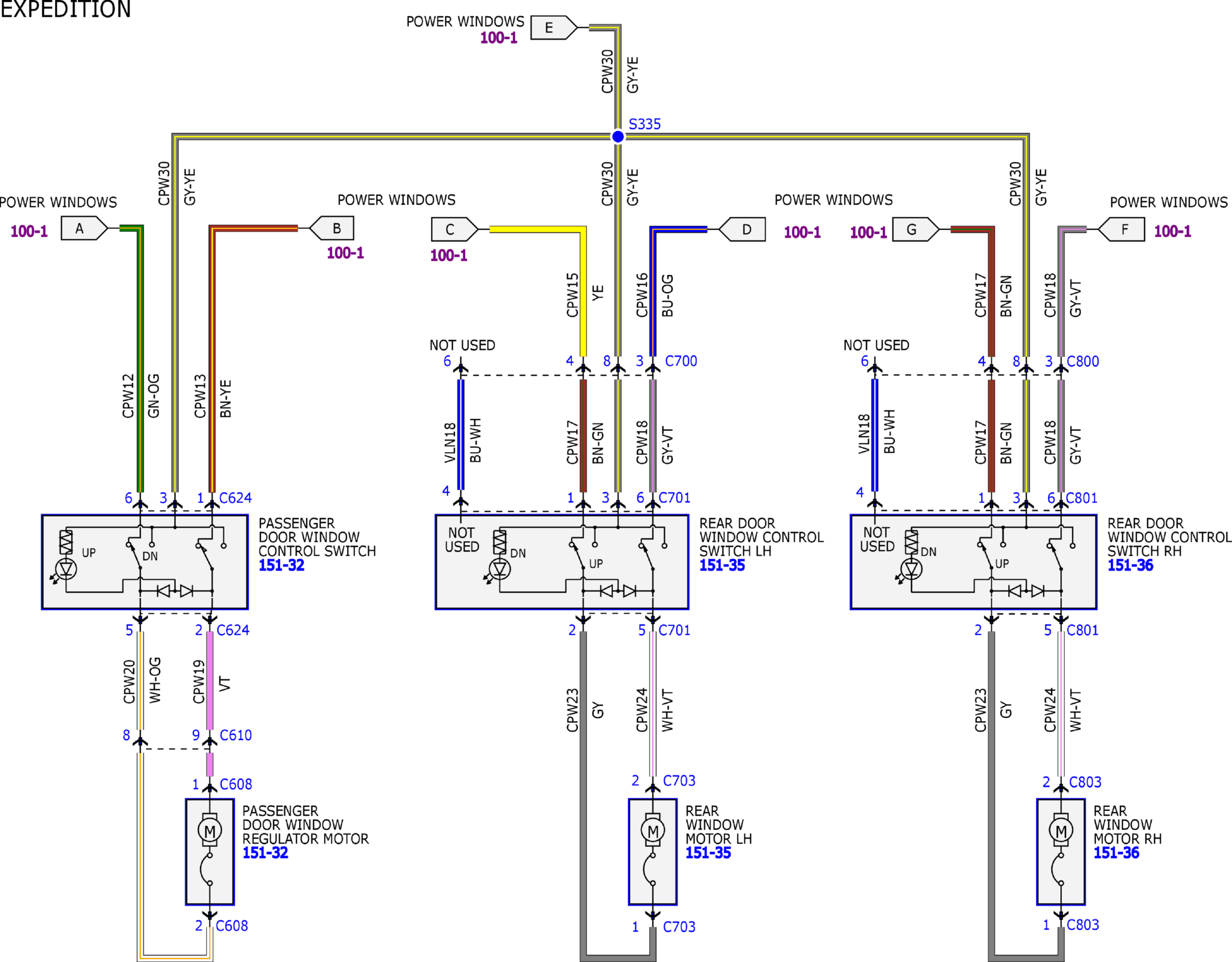

Fig 2: Power Windows Wiring Diagram (2 of 6)
Courtesy of FORD MOTOR COMPANY

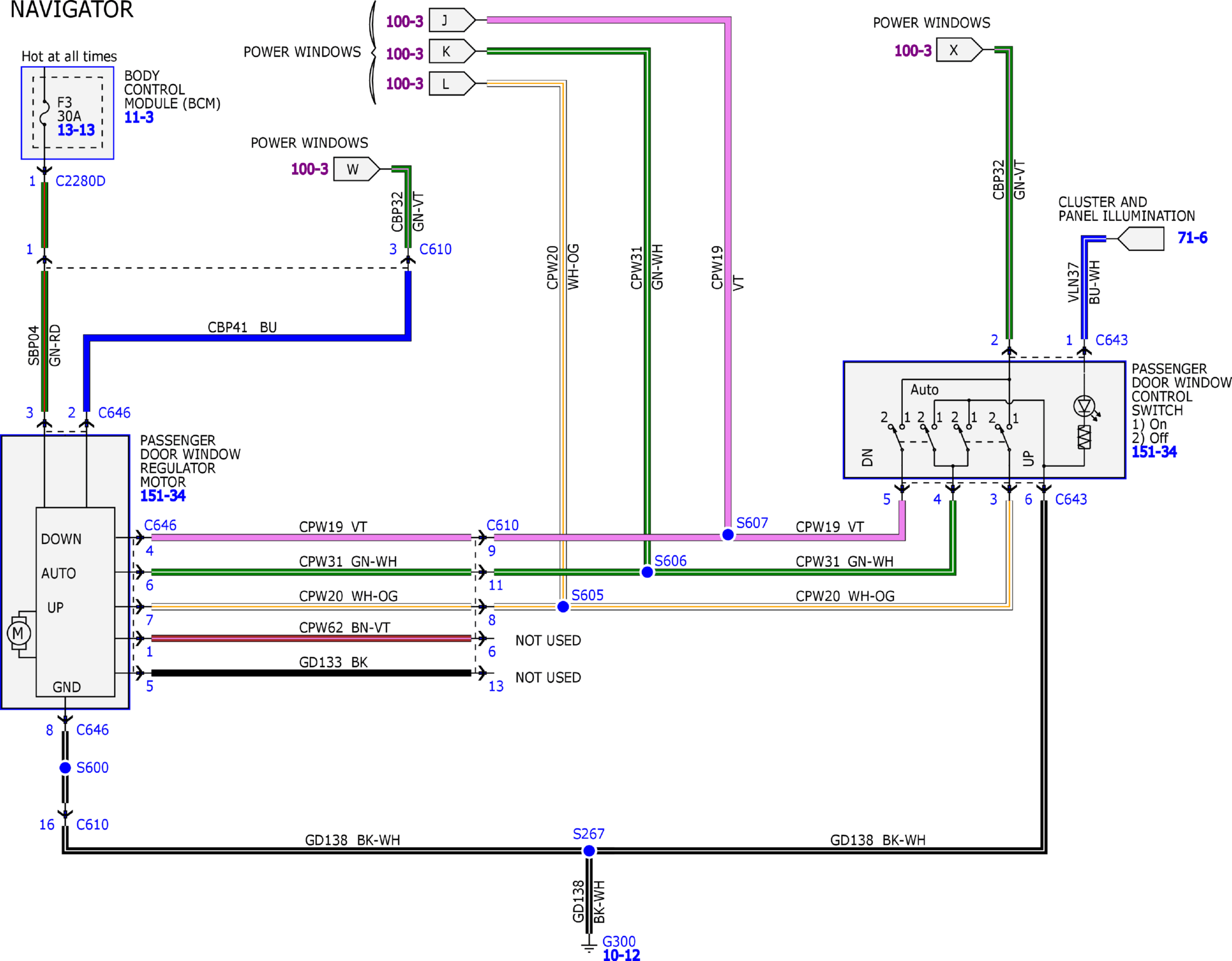

Fig 3: Power Windows Wiring Diagram (3 of 6)
Courtesy of FORD MOTOR COMPANY

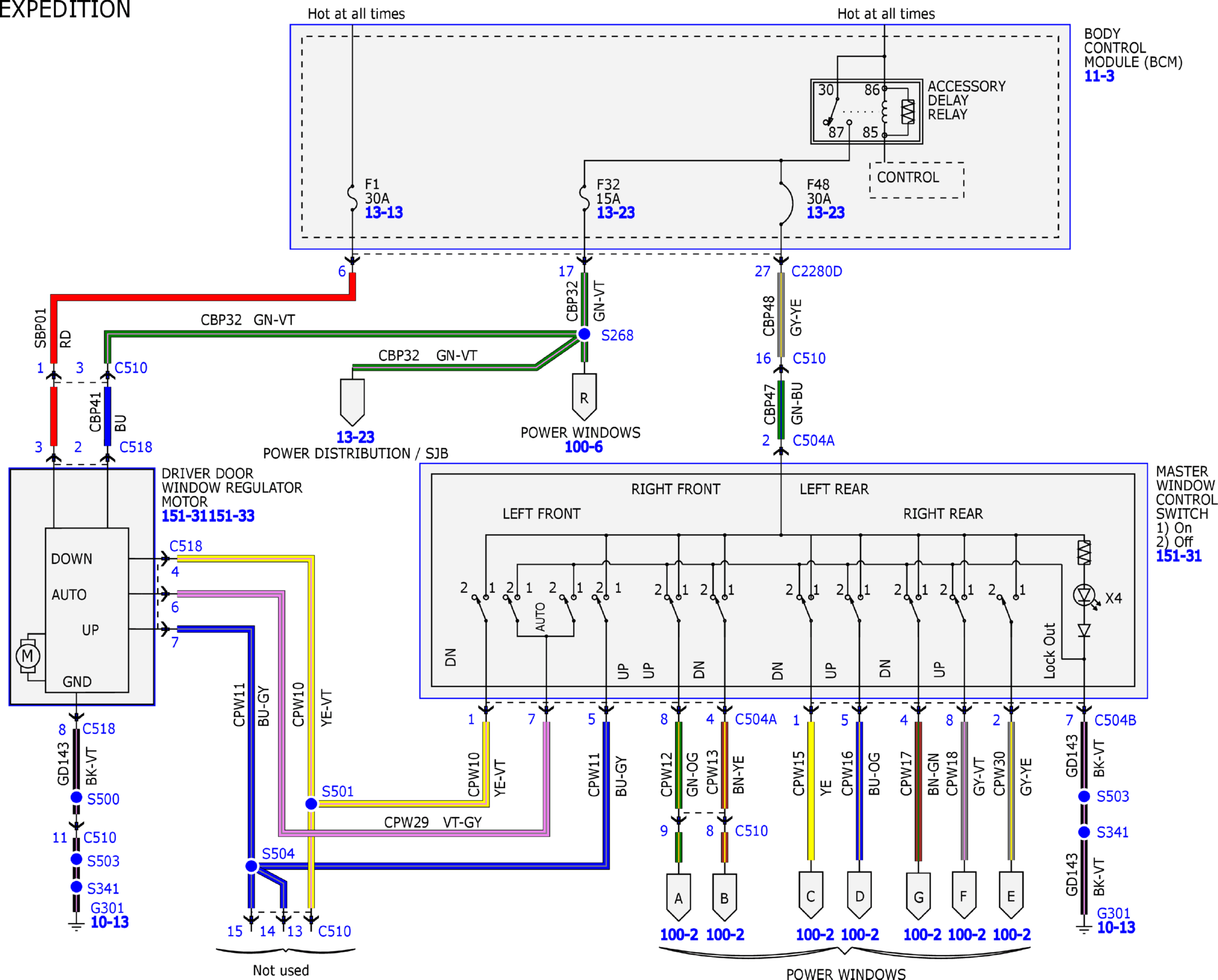

Fig 4: Power Windows Wiring Diagram (4 of 6)
Courtesy of FORD MOTOR COMPANY

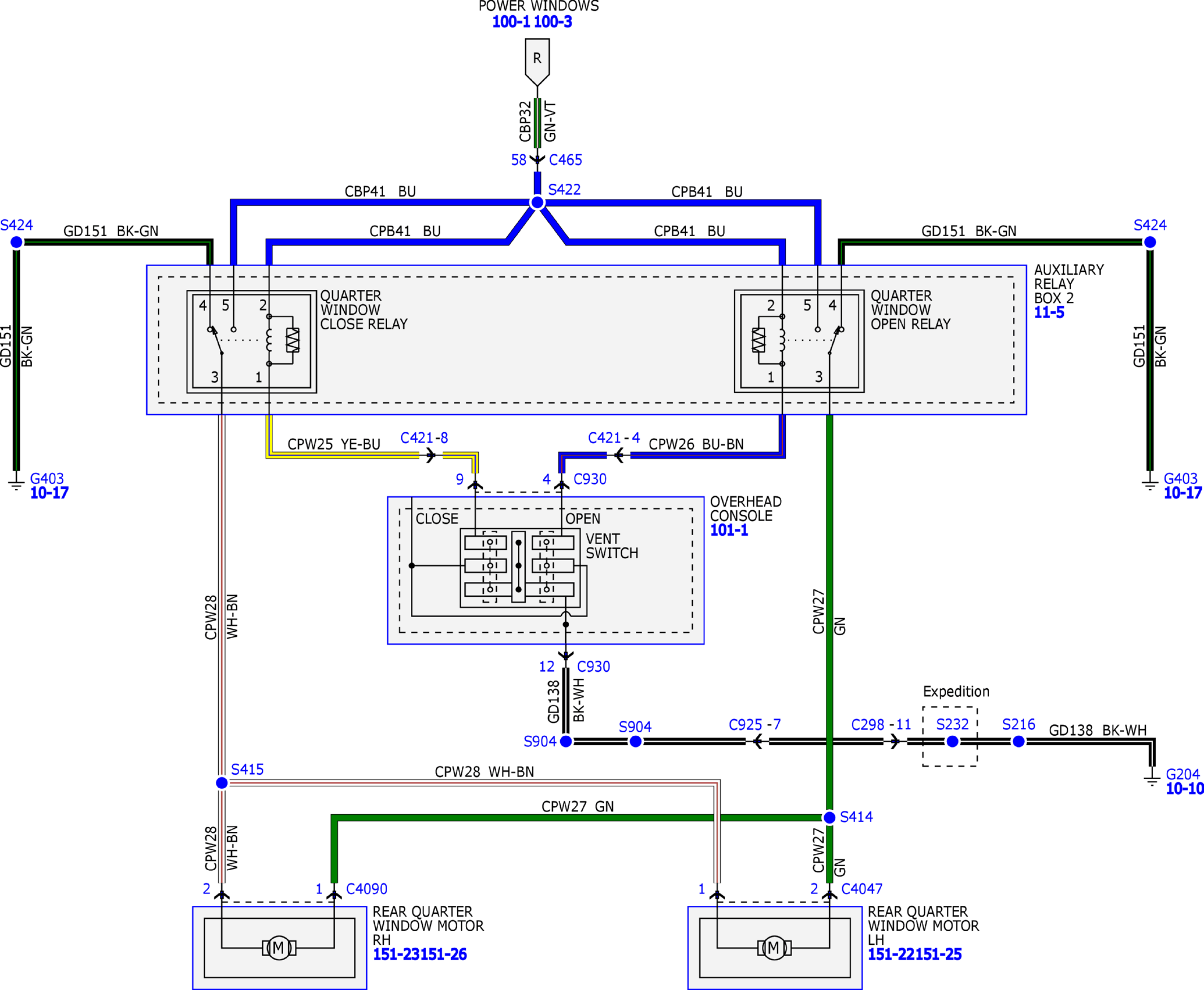

Fig 5: Power Windows Wiring Diagram (5 of 6)
Courtesy of FORD MOTOR COMPANY

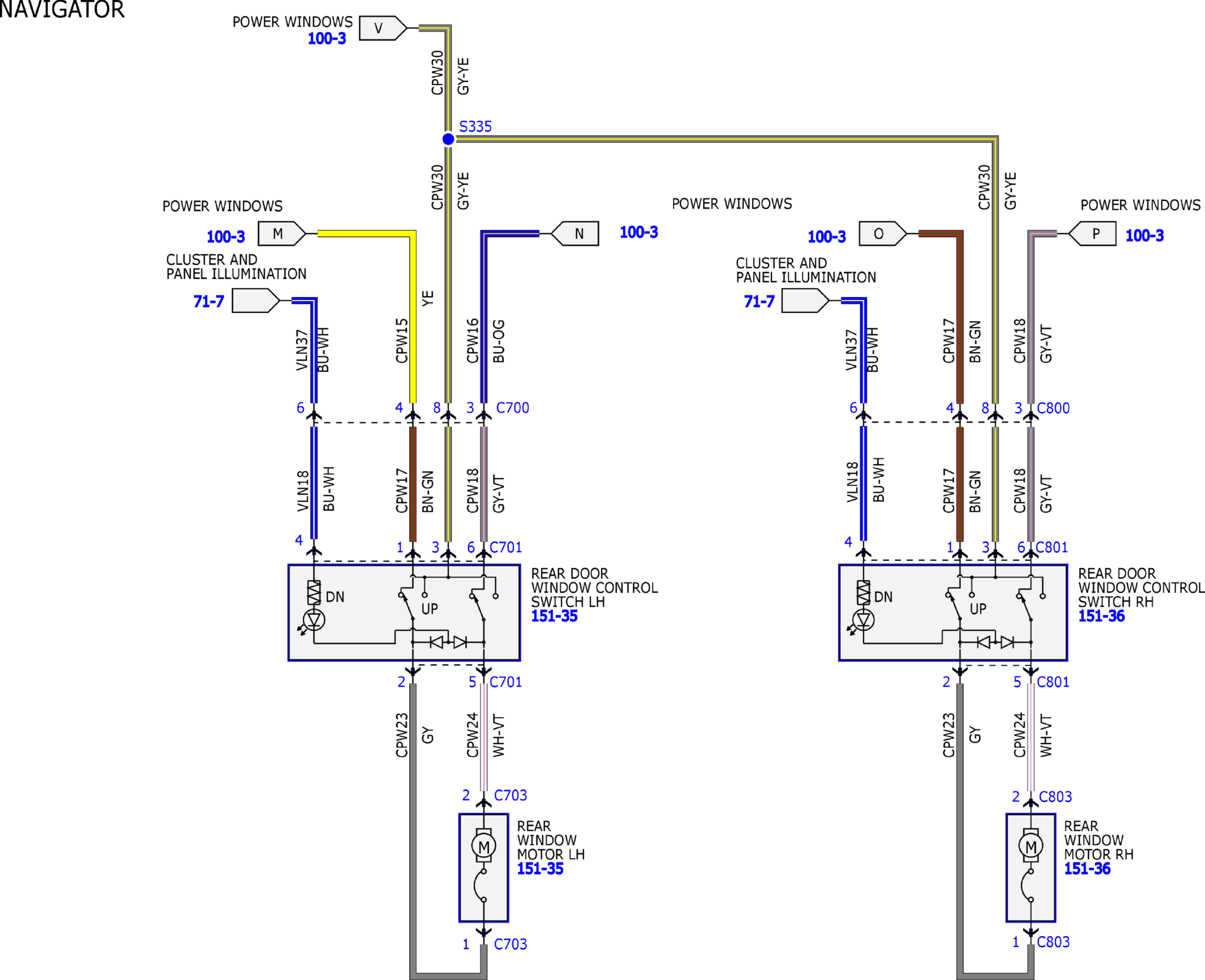

Fig 6: Power Windows Wiring Diagram (6 of 6)
Courtesy of FORD MOTOR COMPANY
