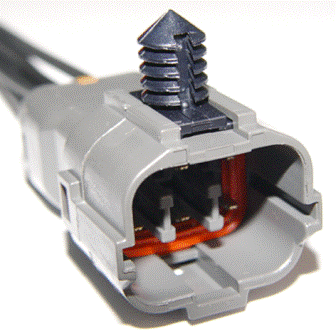

Connector End View (C500) - KEYLESS ENTRY KEYPAD

Connector:C500

Description

KEYLESS ENTRY KEYPAD

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPK29 (GY-BU)	20	SWITCH - KEYLESS KEYPAD LINE A
1	CPK29 (WH-GN)	20	SWITCH - KEYLESS KEYPAD LINE A
1	CPK29 (GY-BU)	20	SWITCH - KEYLESS KEYPAD LINE A
2	CPK28 (WH-GN)	20	CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION
3	CPK30 (VT-GN)	20	SWITCH - KEYLESS KEYPAD LINE B
3	CPK30 (WH-GN)	20	SWITCH - KEYLESS KEYPAD LINE B
3	CPK30 (VT-GN)	20	SWITCH - KEYLESS KEYPAD LINE B
4	GD143 (BK-VT)	20	GROUND - PILLAR B LEFT
4	GD143 (BK-VT)	18	GROUND - PILLAR B LEFT
5	GD133 (BK)	20	GROUND - PILLAR A LEFT
5	GD133 (BK)	18	GROUND - PILLAR A LEFT
6	CPK31 (YE-GN)	20	SWITCH - KEYLESS KEYPAD LINE C
6	CPK31 (WH-GN)	20	SWITCH - KEYLESS KEYPAD LINE C
6	CPK31 (YE-GN)	20	SWITCH - KEYLESS KEYPAD LINE C

Available Pigtail Kits

Pigtail Kit Part Number

WPT-855

Courtesy of FORD MOTOR COMPANY

Service Part Number:

5U2Z-14S411-MA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Module - EGR System
