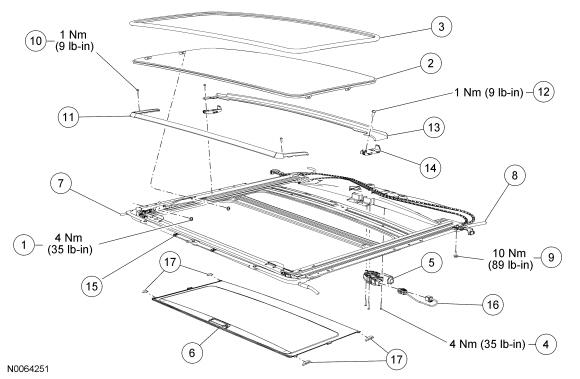

| 1 |
502F24 |
Roof opening panel glass screw (4 required) |
| 2 |
500A18 |
Roof opening panel glass |
| 3 |
51884 |
Roof opening panel glass seal |
| 4 |
15C682 |
Roof opening panel motor screw (3 required) |
| 5 |
15790 |
Roof opening panel motor |
| 6 |
519A02 |
Roof opening panel shield |
| 7 |
502C52 |
Roof opening panel front drain hose (2 required) |
| 8 |
502C52 |
Roof opening panel rear drain hose (2 required) |
| 9 |
N808401 |
Roof opening panel frame bolt (9 required) |
| 10 |
502F36 |
Air deflector screw (2 required) |
| 11 |
500A26 |
Air deflector |
| 12 |
502F36 |
Trough assembly screw (2 required) |
| 13 |
54022 |
Trough assembly |
| 14 |
500A65 |
LH trough guide (RH trough guide part 78500A64) |
| 15 |
502C22 |
Roof opening panel frame |
| 16 |
15A657 |
Electrical jumper harness |
| 17 |
50152 |
Roof opening panel shield guide feet (4 required) |
