Parking, Rear And License Lamps

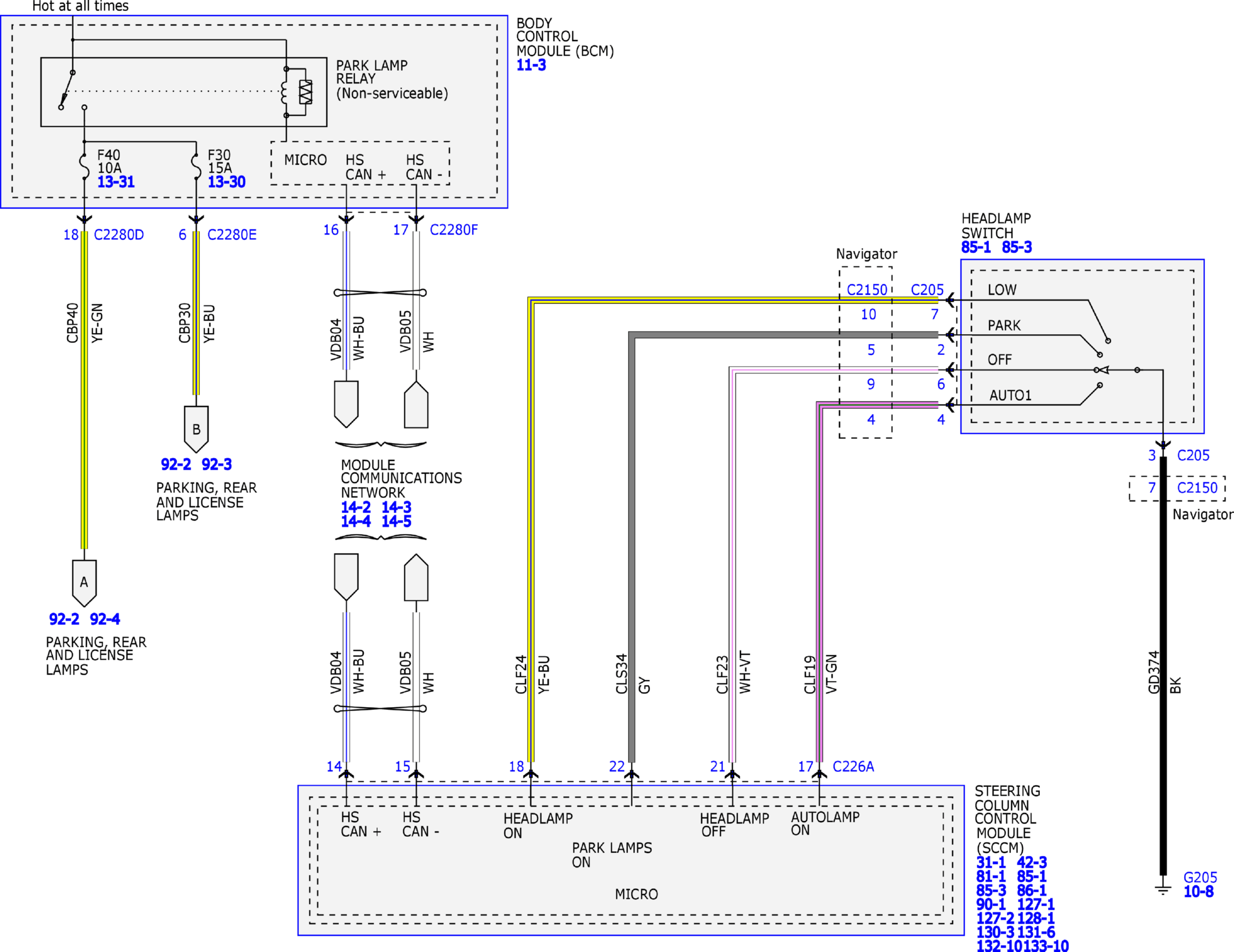

Fig 1: Parking, Rear and License Lamps Wiring Diagram (1 of 4)
GFDW60094Courtesy of FORD MOTOR COMPANY

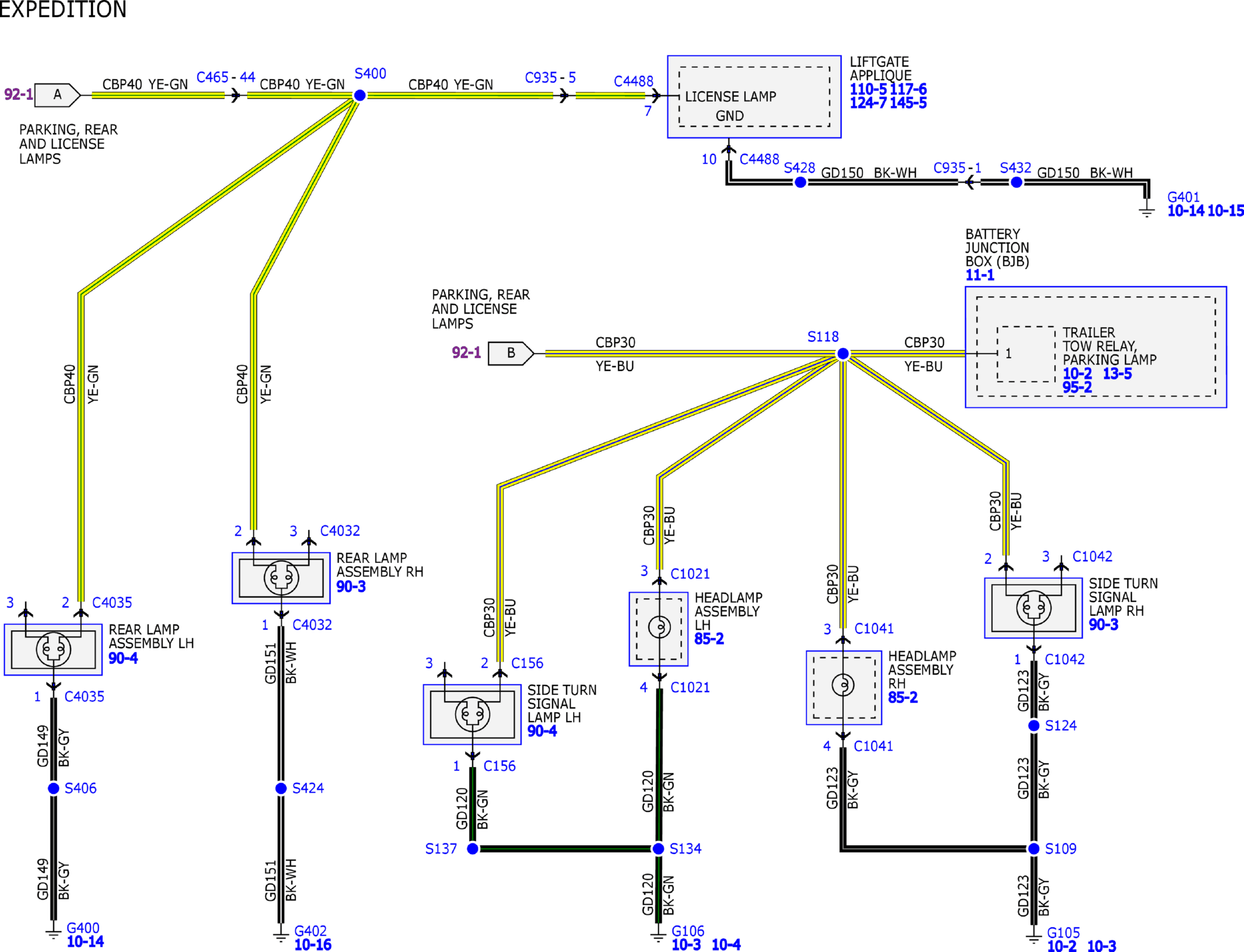

Fig 2: Parking, Rear and License Lamps Wiring Diagram (2 of 4)
GFDW60095Courtesy of FORD MOTOR COMPANY

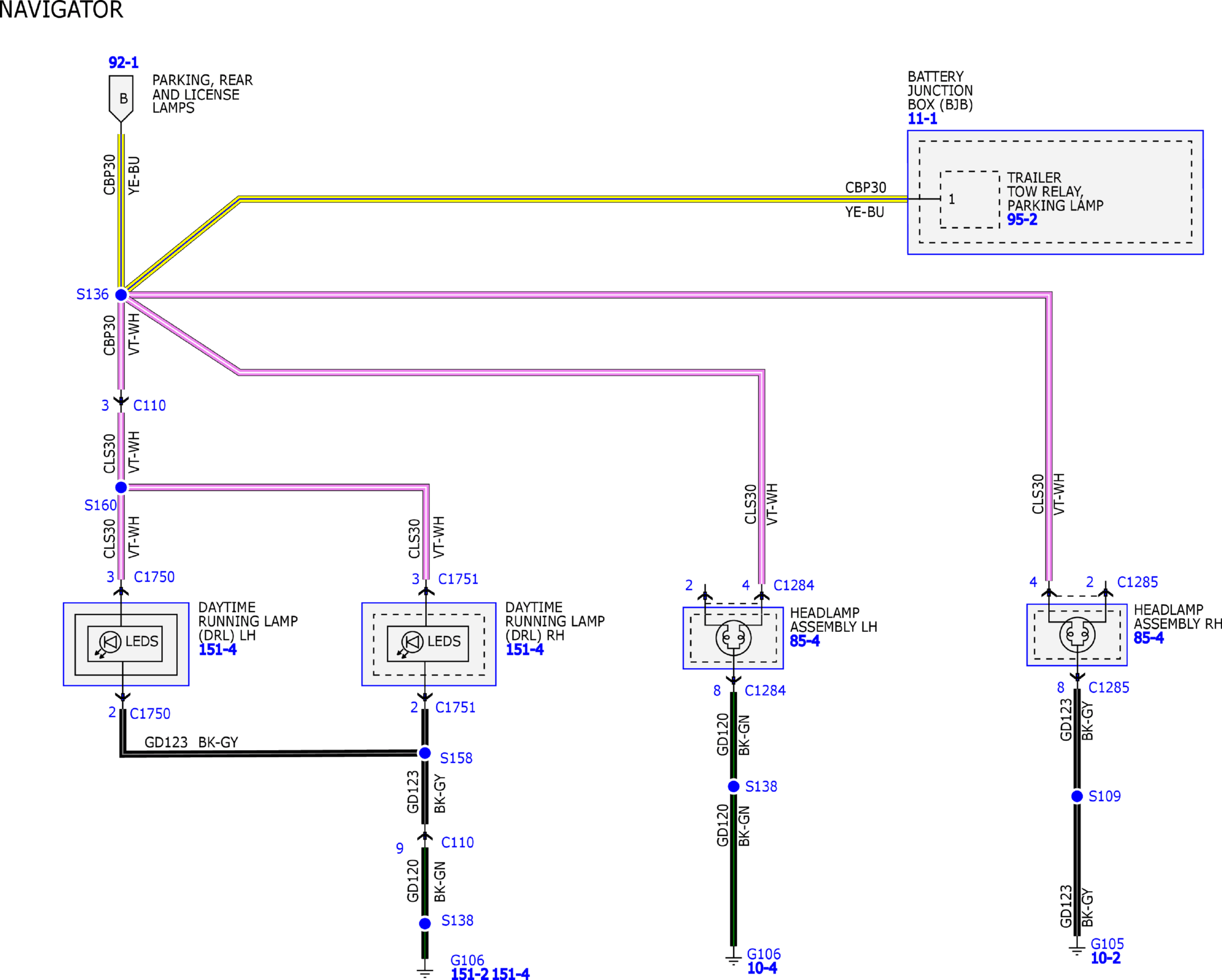

Fig 3: Parking, Rear and License Lamps Wiring Diagram (3 of 4)
GFDW60096Courtesy of FORD MOTOR COMPANY

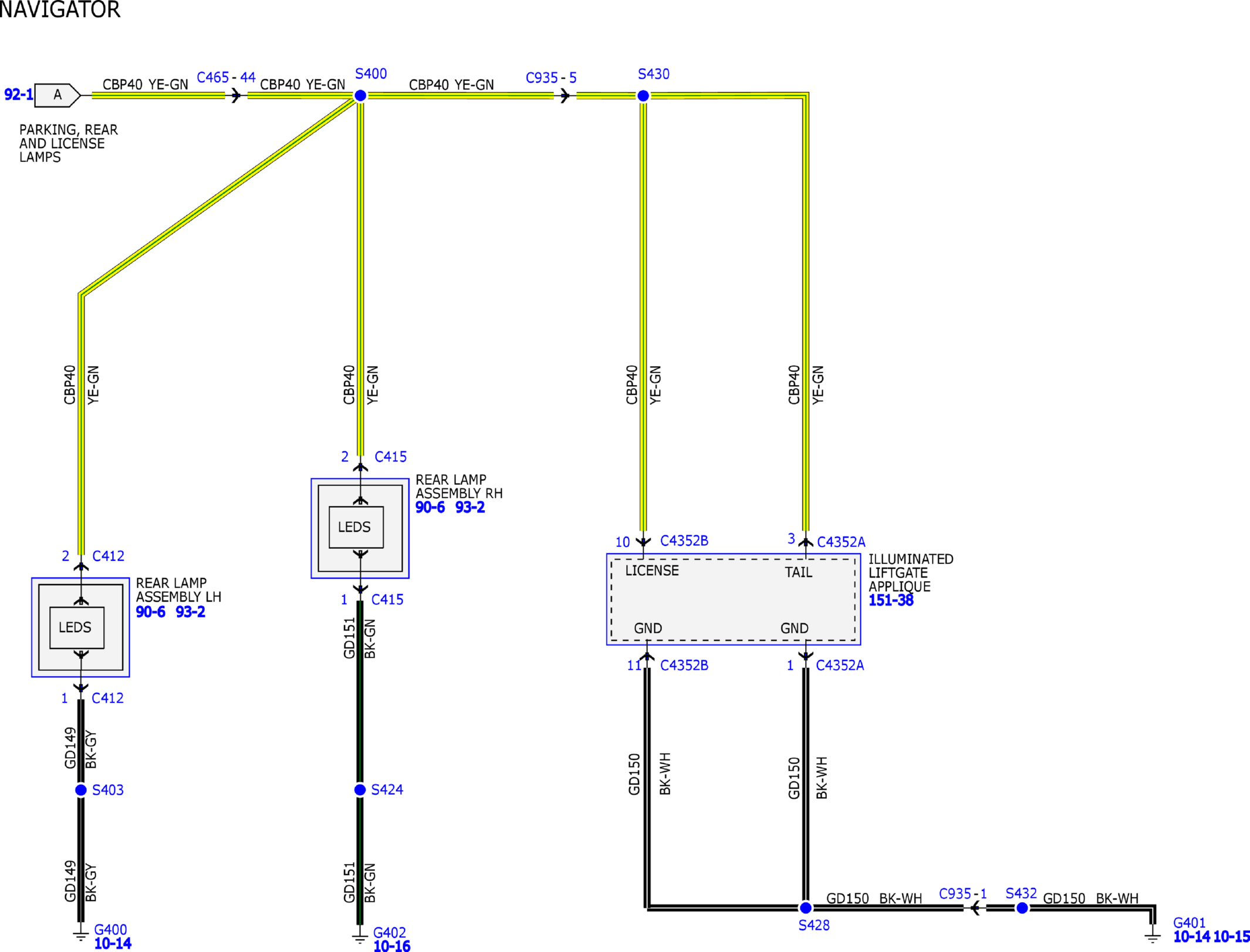

Fig 4: Parking, Rear and License Lamps Wiring Diagram (4 of 4)
GFDW60097Courtesy of FORD MOTOR COMPANY
