Connector End View (C1917) - HEATED OXYGEN SENSOR (HO2S) #12

Connector:C1917

Description

HEATED OXYGEN SENSOR (HO2S) #12

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)
2	CE233 (WH-OG)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12)
3	RE406 (GY-VT)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B)
4	VE731 (YE-GN)	18	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)

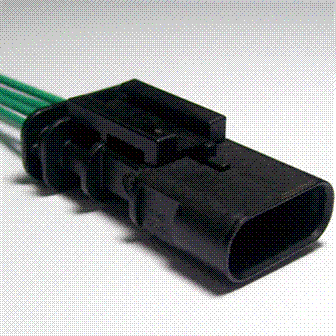

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1381

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-EA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Sensor - Catalyst Monitor
