Connector End View (C1668) - HYDRAULIC SOLENOID VALVE, LEFT FRONT

Connector:C1668

Description

HYDRAULIC SOLENOID VALVE, LEFT FRONT

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCD03 (WH-BU)	18	CTRL MOD. - CDC # VALVE DAMPER FRONT LEFT +
2	RCD03 (VT-BN)	18	CTRL MOD. - CDC # VALVE DAMPER FRONT LEFT -

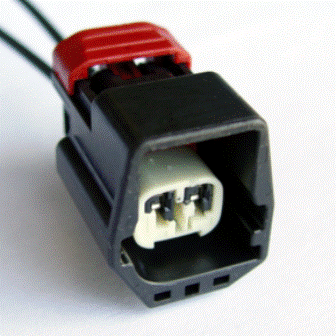

Available Pigtail Kits

Pigtail Kit Part Number

WPT-273

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-GVA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Sensor - Ambient Temp

Sensor - Heated Thermostat
