Connector End View (C1625) - VARIABLE CAMSHAFT TIMING BANK 2 SOLENOID 2 (VCT22)

Connector:C1625

Description

VARIABLE CAMSHAFT TIMING BANK 2 SOLENOID 2 (VCT22)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)
2	CE443 (BN-VT)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 4

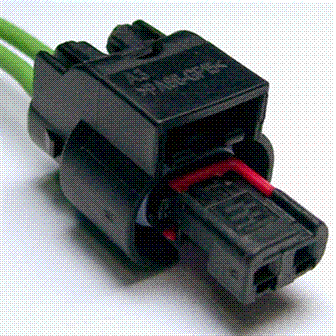

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1251

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-DA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Solenoid - Engine Variable Timing
