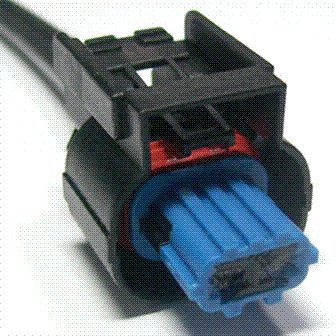

Connector End View (C1584) - TURBOCHARGER BYPASS (TCBY) VALVE

Connector:C1584

Description

TURBOCHARGER BYPASS (TCBY) VALVE

Color

Harness

12A581

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB79 (VT-WH)	18	FUSE - 79 OR CIRCUIT BREAKER
2	VE175 (BN-WH)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC COMPRESSOR BYPASS VALVE (ECBV PWM)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1062

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-UA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Fuel Injector

Sensor - Fuel Tank Temperature

Solenoid - Super Charger Bypass
