Connector End View (C4491) - REAR D-PILLAR SPEAKER RH

Connector:C4491

Description

REAR D-PILLAR SPEAKER RH

Color

Harness

13A409

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME47 (BN-VT)	16	SPEAKER - CENTER REAR SERIES #1
2	RME30 (VT-BN)	16	CTRL MOD. - AUDIO # SPEAKER CENTER REAR -
3	DME09 (BK)	20	CTRL MOD. - AUDIO # REAR D

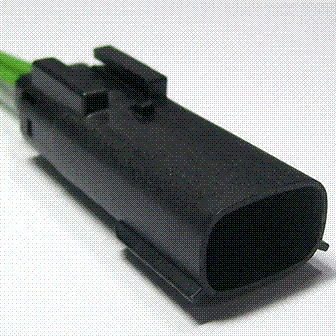

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1180

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-ASA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Speaker - Tweeter - RH - Rear
