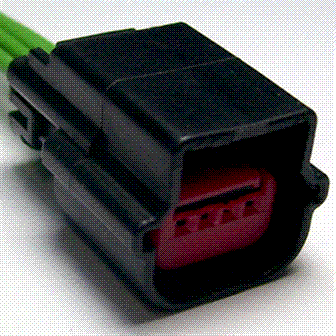

Connector End View (C4321) - KEYLESS VEHICLE REAR ANTENNA
Connector:C4321
Description
KEYLESS VEHICLE REAR ANTENNA
Color
Harness
14B509
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VPK08 (WH-OG) | 20 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR + | |
| 2 | RPK08 (BN-VT) | 20 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR - | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1307 |
Service Part Number: CU2Z-14S411-AGA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Antenna - Keyless Entry Sensor - Brake Pedal Position Sensor - Clutch Master Cylinder |
