Connector End View (C4173) - LIFTGATE ANTI-PINCH SWITCH RH

Connector:C4173

Description

LIFTGATE ANTI-PINCH SWITCH RH

Color

Harness

13A409

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPR51 (YE-OG)	20	SWITCH - POWER LIFTGATE # OBSTACLE DETECT - RIGHT
2	RPR52 (VT-GY)	20	SWITCH - POWER LIFTGATE # OBSTACLE DETECT -

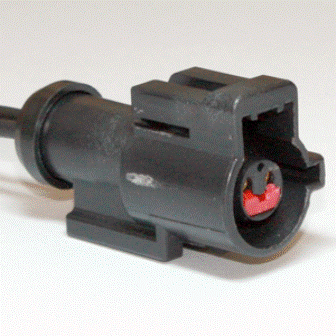

Available Pigtail Kits

Pigtail Kit Part Number

WPT-5361

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-SVB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Cigar Lighter

Sensor - Cam Shaft Position

Speaker - Reverse Park Aid (RPA)
