Connector End View (C4106) - AUXILIARY BLOWER MOTOR

Connector:C4106

Description

AUXILIARY BLOWER MOTOR

Color

Harness

19F561

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHA05 (BN-WH)	10	SWITCH - AUX. BLOWER # REAR
2	CHA06 (YE-VT)	10	SWITCH - AUX. BLOWER # POSITION LOW

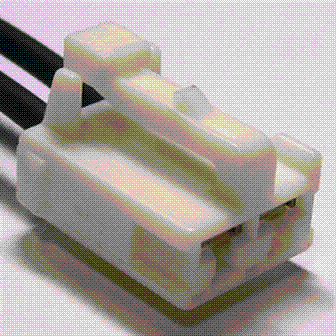

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1347

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-NA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Motor - Heater/AC Blower (Auxiliary)
