Connector End View (C703) - REAR WINDOW MOTOR LH
Connector:C703
Description
REAR WINDOW MOTOR LH
Color
Harness
14014
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPW23 (GY) | 12 | SWITCH - POWER WINDOW REAR RIGHT # DOWN | |
| 2 | CPW24 (WH-VT) | 12 | SWITCH - POWER WINDOW REAR RIGHT # UP |

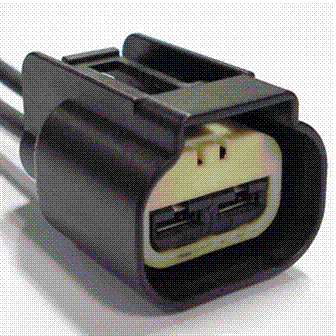

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1122 |
Service Part Number: 3U2Z-14S411-YBB Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Heater/AC Blower (Front) Motor - Power Slider Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear |
