Connector End View (C513) - FRONT DOOR TWEETER SPEAKER LH
Connector:C513
Description
FRONT DOOR TWEETER SPEAKER LH
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME08 (GN-OG) | 16 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER | |
| 1 | VME08 (GN-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER | |
| 2 | RME08 (GY-OG) | 16 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER | |
| 2 | RME08 (GY-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER |

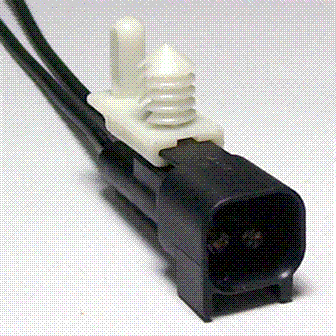

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1186 |
Service Part Number: BU2Z-14S411-AKA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Speaker - Tweeter - LH - Front Speaker - Tweeter - LH - Rear Speaker - Tweeter - RH - Front Speaker - Tweeter - RH - Rear Switch - Seatbelt |
