Connector End View (C476) - REAR WINDOW WIPER MOTOR

Connector:C476

Description

REAR WINDOW WIPER MOTOR

Color

Harness

14086

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB47 (WH-RD)	14	FUSE - 47 OR CIRCUIT BREAKER
2	CRW02 (GY-BU)	22	CTRL MOD. - REAR WIPER
3	GD150 (BK-WH)	14	GROUND - PILLAR D LEFT # 2ND POINT (OBSOLETE)

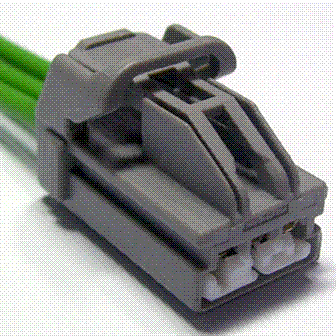

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1147

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BHAB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Motor - Rear Window Wiper

Motor - Seat Recline

Refrigerator
