Connector End View (C380) - FRONT POWER OUTLET SOCKET

Connector:C380

Description

FRONT POWER OUTLET SOCKET

Color

Harness

14B079

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB19 (BU-RD)	12	FUSE - 19 OR CIRCUIT BREAKER
2	*	*	Not Used
3	GD143 (BK-VT)	12	GROUND - PILLAR B LEFT (OBSOLETE)

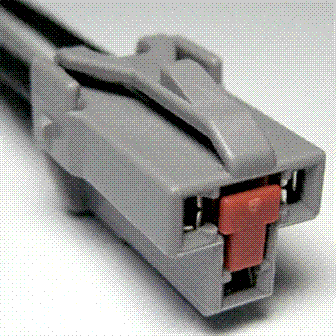

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1160

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-SJB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Cigar Lighter

Lamp - Ash Tray

Power Point
