Connector End View (C3066) - PASSENGER SAFETY BELT BUCKLE SWITCH
Connector:C3066
Description
PASSENGER SAFETY BELT BUCKLE SWITCH
Color
Harness
14A699
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | CR202 (BN-GN) | 18 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT MIDDLE | |
| 4 | RR159 (WH-GN) | 18 | CTRL MOD. - SENSOR SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD |
| Available Pigtail Kits | |

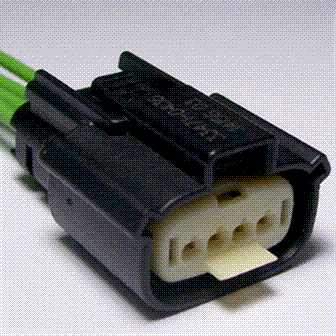

| Pigtail Kit Part Number WPT-1427 |
Service Part Number: 9U2Z-14S411-MB Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Switch - Seatbelt |

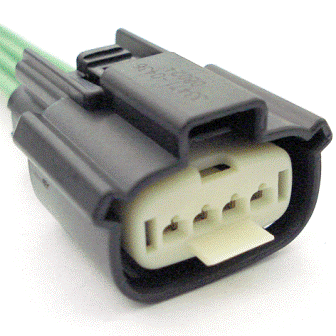

| Pigtail Kit Part Number WPT-940 |
Service Part Number: 9U2Z-14S411-MA Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses Pretensioner - Seat Belt (Passenger) |
