Connector End View (C2356) - INSTRUMENT PANEL CENTER SPEAKER
Connector:C2356
Description
INSTRUMENT PANEL CENTER SPEAKER
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME06 (GN) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP + | |
| 2 | RME06 (GY-YE) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP - |
| Available Pigtail Kits | |

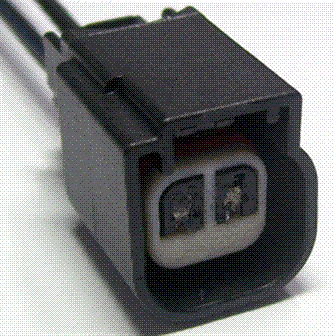

| Pigtail Kit Part Number WPT-1052 |
Service Part Number: 3U2Z-14S411-JLB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses A/C Compressor Clutch Actuator - Door Lock Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - LH - Sliding Door Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Actuator - Door Lock - RH - Sliding Door Actuator - Liftgate Glass Lamp - Headlamp - Low Beam Lamp - License Lamp - Side Marker Motor - Power Window - LH - Rear Pump - Fuel (External) Sensor - Side Impact Solenoid - Brake Shift Park Interlock Speaker - Door (front) Speaker - Door (rear) Speaker - Front Speaker - Rear Speaker - Tweeter - LH - Front Speaker - Tweeter - LH - Rear Speaker - Tweeter - RH - Front Speaker - Tweeter - RH - Rear |
