Connector End View (C303) - PASSENGER SAFETY BELT PRETENSIONER

Connector:C303

Description

PASSENGER SAFETY BELT PRETENSIONER

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR122 (WH-OG)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD +
2	RR122 (BN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD -

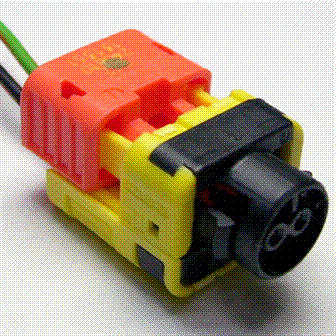

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1228

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BMA

Gauge:

Pin material:

FCI - Airbag

Cavities:

Vehicle Uses

Airbag - Side Curtain
