Connector End View (C153) - HEADLAMP WASHER PUMP
Connector:C153
Description
HEADLAMP WASHER PUMP
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CRW14 (BU-GY) | 14 | CTRL MOD. - FRONT WASHER | |
| 2 | GD120 (BK-GN) | 14 | GROUND - FENDER FRONT LEFT |
| Available Pigtail Kits | |

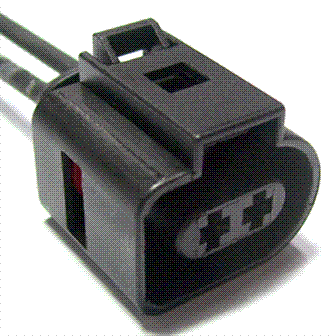

| Pigtail Kit Part Number WPT-1024 |
Service Part Number: 3U2Z-14S411-ZLB Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear |
