Connector End View (C106) - FUEL RAIL PRESSURE (FRP) SENSOR

Connector:C106

Description

FUEL RAIL PRESSURE (FRP) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)
2	VE727 (BU-BN)	20	SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)
3	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1281

Courtesy of FORD MOTOR COMPANY

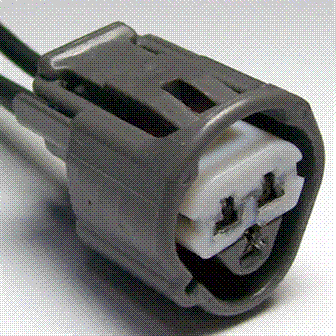

Service Part Number:

CU2Z-14S411-PA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - Fuel Rail Pressure
