Temperature Blend Door Actuator Driver (EATC)

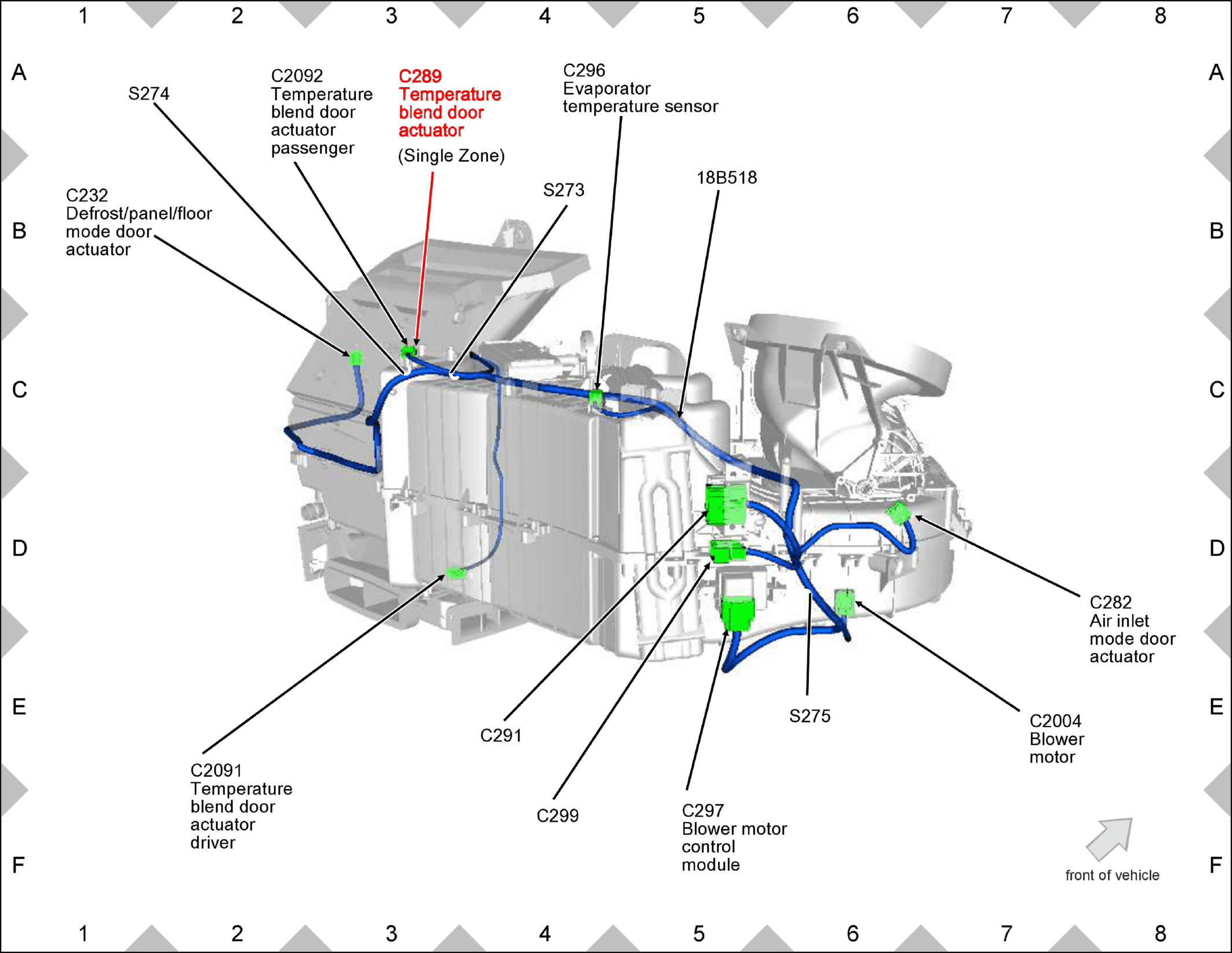

Fig 1: Temperature Blend Door Actuator Driver (EATC) Components Location

GFDW59156

Courtesy of FORD MOTOR COMPANY
