Power Point 1 Instrument Panel (Navigator)

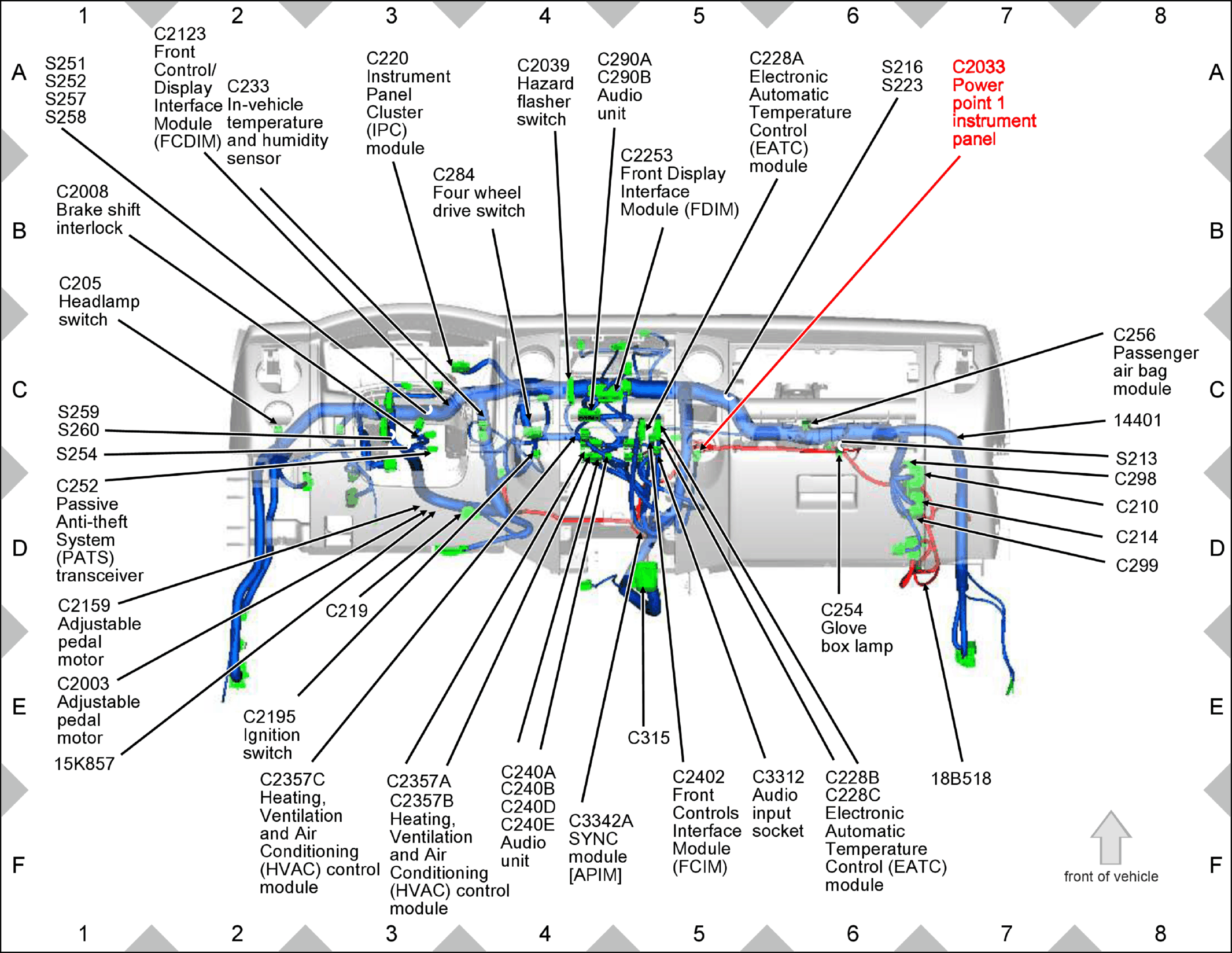

Fig 1: Power point 1 instrument panel (Navigator)

GFDW59102

Courtesy of FORD MOTOR COMPANY
